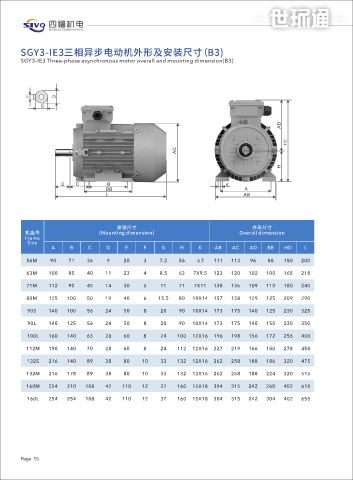

SGY3-IE3三相异步电动机外形及安装尺⼨（B3) SGY3-IE3三相异步电动机外形及安装尺⼨（B5/B35)
SGY3-IE3 Three-phase asynchronous motor overall and mounting dimension(B3) SGY3-IE3 Three-phase asynchronous motor overall and mounting dimension(B5/B35)
安装尺⼨ 外形尺⼨
机座号 (Mounting dimension) Overall dimension
Frame
Size
A B C D E F G H K AB AC AD BB HD L
56M 90 71 36 9 20 3 7.2 56 φ7 111 113 96 88 150 200
安装尺⼨ B5安装⽅式 外形尺⼨
63M 100 80 40 11 23 4 8.5 63 7X9.5 123 120 102 100 165 218 机座号 (Mounting dimension) Mounting dimension for Overall dimension
Frame B5(V1\V3)
Size
71M 112 90 45 14 30 5 11 71 7X11 138 136 109 110 180 245 A B C D E F G H K M N P S T AB AC AD BB HD L
80M 125 100 50 19 40 6 15.5 80 10X14 157 158 129 125 209 290 56M 90 71 36 9 20 3 7.2 56 φ7 100 80 120 7 3 111 113 96 88 150 200
90S 140 100 56 24 50 8 20 90 10X14 173 175 140 125 230 325 63M 100 80 40 11 23 4 8.5 63 7X9.5 115 95 140 10 3 123 120 102 100 165 218
90L 140 125 56 24 50 8 20 90 10X14 173 175 140 150 230 350 71M 112 90 45 14 30 5 11 71 7X11 130 110 160 10 3.5 138 136 109 110 180 245
100L 160 140 63 28 60 8 24 100 12X16 196 198 156 172 256 400 80M 125 100 50 19 40 6 15.5 80 10X14 165 130 200 12 3.5 157 158 129 125 209 290
112M 190 140 70 28 60 8 24 112 12X16 227 219 166 180 278 450 90S 140 100 56 24 50 8 20 90 10X14 165 130 200 12 3.5 173 175 140 125 230 325
132S 216 140 89 38 80 10 33 132 12X16 262 258 188 186 320 475 90L 140 125 56 24 50 8 20 90 10X14 165 130 200 12 3.5 173 175 140 150 230 350
132M 216 178 89 38 80 10 33 132 12X16 262 258 188 224 320 515 100L 160 140 63 28 60 8 24 100 12X16 215 180 250 14.5 4 196 198 156 172 256 400
160M 254 210 108 42 110 12 37 160 15X18 304 315 242 260 402 610 112M 190 140 70 28 60 8 24 112 12X16 215 180 250 14.5 4 227 219 166 180 278 450
160L 254 254 108 42 110 12 37 160 15X18 304 315 242 304 402 655 132S 216 140 89 38 80 10 33 132 12X16 265 230 300 14.5 4 262 258 188 186 320 475
132M 216 178 89 38 80 10 33 132 12X16 265 230 300 14.5 4 262 258 188 224 320 515
160M 254 210 108 42 110 12 37 160 15X18 300 250 350 18.5 5 304 315 242 260 402 610
160L 254 254 108 42 110 12 37 160 15X18 300 250 350 18.5 5 304 315 242 304 402 655
