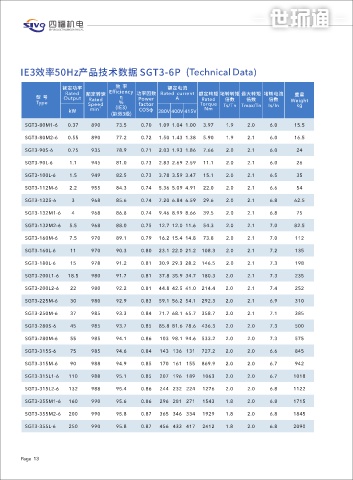

IE3效率50Hz产品技术数据 SGT3-6P (Technical Data) IE3效率50Hz产品技术数据 SGT3-8P (Technical Data)

额定功率 效 率 额定电流 额定功率 效 率 额定电流
Rated 额定转速 Efficiency 功率因数 Rated current 额定转矩 堵转转矩 最⼤转矩 堵转电流 重量 Rated 额定转速 Efficiency 功率因数 Rated current 额定转矩 堵转转矩 最⼤转矩 堵转电流 重量
型 号 Output Rated η Power A Rated 倍数 倍数 倍数 型 号 Output Rated η Power A Rated 倍数 倍数 倍数 Weight
Type Speed % factor Torque Ts/Tn Tmax/Tn Is/In Weight Type Speed % factor Torque Ts/Tn Tmax/Tn Is/In kg
kg
kW min -1 (IE3) COSφ 380V 400V 415V Nm kW min -1 (IE3) COSφ 380V 400V 415V Nm
(能效3级) (能效3级)
SGT3-80M1-6 0.37 890 73.5 0.70 1.09 1.04 1.00 3.97 1.9 2.0 6.0 15.5 SGT3-80M1-8 0.18 650 58.7 0.61 0.76 0.73 0.70 2.64 1.8 1.9 5.2 14.5
SGT3-80M2-6 0.55 890 77.2 0.72 1.50 1.43 1.38 5.90 1.9 2.1 6.0 16.5 SGT3-80M2-8 0.25 650 64.1 0.61 0.97 0.92 0.89 3.67 1.8 1.9 5.7 17

SGT3-90S-6 0.75 935 78.9 0.71 2.03 1.93 1.86 7.66 2.0 2.1 6.0 24 SGT3-90S-8 0.37 675 69.3 0.61 1.33 1.26 1.22 5.23 1.8 1.9 6.2 28.5

SGT3-90L-6 1.1 945 81.0 0.73 2.83 2.69 2.59 11.1 2.0 2.1 6.0 26 SGT3-90L-8 0.55 675 73.0 0.61 1.88 1.78 1.72 7.78 1.8 2.0 5.9 30
SGT3-100L-6 1.5 949 82.5 0.73 3.78 3.59 3.47 15.1 2.0 2.1 6.5 35 SGT3-100L1-8 0.75 685 75.0 0.67 2.27 2.15 2.08 10.5 1.8 2.0 6.2 40

SGT3-112M-6 2.2 955 84.3 0.74 5.36 5.09 4.91 22.0 2.0 2.1 6.6 54 SGT3-100L2-8 1.1 685 77.7 0.69 3.12 2.96 2.85 15.3 1.8 2.0 6.2 41.5

SGT3-132S-6 3 968 85.6 0.74 7.20 6.84 6.59 29.6 2.0 2.1 6.8 62.5 SGT3-112M-8 1.5 695 79.7 0.70 4.08 3.88 3.74 20.6 1.8 2.0 6.7 57.5
SGT3-132M1-6 4 968 86.8 0.74 9.46 8.99 8.66 39.5 2.0 2.1 6.8 75 SGT3-132S-8 2.2 710 81.9 0.71 5.75 5.46 5.26 29.6 1.8 2.0 6.7 75

SGT3-132M2-6 5.5 968 88.0 0.75 12.7 12.0 11.6 54.3 2.0 2.1 7.0 82.5 SGT3-132M-8 3 710 83.5 0.73 7.48 7.10 6.85 40.4 1.8 2.0 6.9 89
SGT3-160M-6 7.5 970 89.1 0.79 16.2 15.4 14.8 73.8 2.0 2.1 7.0 112 SGT3-160M1-8 4 725 84.8 0.73 9.82 9.33 8.99 52.7 1.9 2.0 6.9 102

SGT3-160L-6 11 970 90.3 0.80 23.1 22.0 21.2 108.3 2.0 2.1 7.2 135 SGT3-160M2-8 5.5 725 86.2 0.74 13.1 12.4 12.0 72.4 1.9 2.0 6.9 127

SGT3-180L-6 15 978 91.2 0.81 30.9 29.3 28.2 146.5 2.0 2.1 7.3 198 SGT3-160L-8 7.5 725 87.3 0.75 17.4 16.5 15.9 98.8 1.9 2.0 6.6 135
SGT3-200L1-6 18.5 980 91.7 0.81 37.8 35.9 34.7 180.3 2.0 2.1 7.3 235 SGT3-180L-8 11 735 88.6 0.75 25.2 23.9 23.0 142.9 2.0 2.0 6.6 198

SGT3-200L2-6 22 980 92.2 0.81 44.8 42.5 41.0 214.4 2.0 2.1 7.4 252 SGT3-200L-8 15 730 89.6 0.76 33.5 31.8 30.6 196.2 2.0 2.0 6.8 235

SGT3-225M-6 30 980 92.9 0.83 59.1 56.2 54.1 292.3 2.0 2.1 6.9 310 SGT3-225S-8 18.5 730 90.1 0.76 41.0 39.0 37.6 242.0 1.9 2.0 6.8 285
SGT3-250M-6 37 985 93.3 0.84 71.7 68.1 65.7 358.7 2.0 2.1 7.1 385 SGT3-225M-8 22 730 90.6 0.78 47.3 44.9 43.3 287.8 1.9 2.0 7.0 325

SGT3-280S-6 45 985 93.7 0.85 85.8 81.6 78.6 436.3 2.0 2.0 7.3 500 SGT3-250M-8 30 735 91.3 0.79 63.2 60.0 57.9 389.8 1.9 2.0 6.7 425
SGT3-280M-6 55 985 94.1 0.86 103 98.1 94.6 533.2 2.0 2.0 7.3 575 SGT3-280S-8 37 735 91.8 0.79 77.5 73.6 71.0 480.7 1.9 2.0 6.7 518

SGT3-315S-6 75 985 94.6 0.84 143 136 131 727.2 2.0 2.0 6.6 845 SGT3-280M-8 45 735 92.2 0.79 93.9 89.2 85.9 584.7 1.9 2.0 6.7 582

SGT3-315M-6 90 988 94.9 0.85 170 161 155 869.9 2.0 2.0 6.7 942 SGT3-315S-8 55 735 92.5 0.81 112 106 102 714.6 1.8 2.0 6.8 852
SGT3-315L1-6 110 988 95.1 0.85 207 196 189 1063 2.0 2.0 6.7 1018 SGT3-315M-8 75 735 93.1 0.81 151 144 138 974.5 1.8 2.0 6.3 955

SGT3-315L2-6 132 988 95.4 0.86 244 232 224 1276 2.0 2.0 6.8 1122 SGT3-315L1-8 90 735 93.4 0.82 179 170 163 1169 1.8 2.0 6.4 1040

SGT3-355M1-6 160 990 95.6 0.86 296 281 271 1543 1.8 2.0 6.8 1715 SGT3-315L2-8 110 735 93.7 0.82 218 207 199 1429 1.8 2.0 6.4 1060
SGT3-355M2-6 200 990 95.8 0.87 365 346 334 1929 1.8 2.0 6.8 1845 SGT3-355M1-8 132 740 94.0 0.82 260 247 238 1704 1.8 2.0 6.4 1785

SGT3-355L-6 250 990 95.8 0.87 456 433 417 2412 1.8 2.0 6.8 2090 SGT3-355M2-8 160 740 94.3 0.82 314 299 288 2065 1.8 2.0 6.4 1945

SGT3-355L-8 200 740 94.6 0.83 387 368 354 2581 1.8 2.0 6.4 2030
