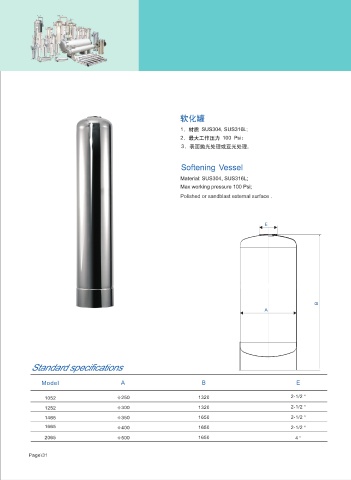

软化罐 软化罐带腿
1. 材质 SUS304, SUS316L; 1. 材质 SUS304, SUS316L;
2. 最大工作压力 100 Psi; 2. 最大工作压力 100 Psi;
3. 表面抛光处理或亚光处理。 3. 表面抛光处理或亚光处理。
Softening Vessel Softening Vessel with legs
E
Material: SUS304, SUS316L; Material: SUS304, SUS316L;
Max working pressure 100 Psi; Max working pressure 100 Psi;
Polished or sandblast external surface . Polished or sandblast external surface .
E
A B
B
A
F
Standard specifications
Standard specifications Model A B F E
2265 φ550 1650 250 4＂
Model A B E
2472 φ600 1850 300 4＂
1052 φ250 1320 2-1/2＂ 3072 φ750 1850 300 4＂
1252 φ300 1320 2-1/2＂ 3272 φ800 1850 300 4＂
1465 φ350 1650 2-1/2＂ 3672 φ900 1850 300 4＂
1665 φ400 1650 2-1/2＂ 4272 φ1000 1850 300 4＂
2065 φ500 1650 4＂ 4872 φ1200 1850 350 4＂
