水箱
1. 材质 SUS304, SUS316L;

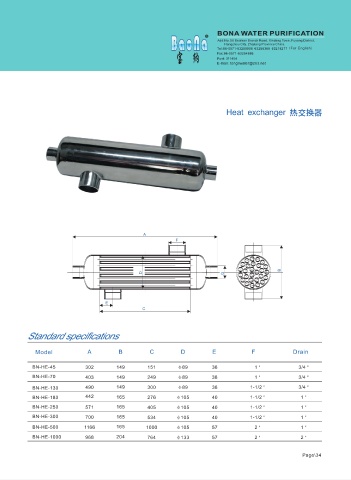

Heat exchanger 热交换器
2. 最大工作压力 100 Psi;
3. 亚光处理。
Water Tank (Round Cap)
Material: SUS304, SUS316L;
Max working pressure 100 Psi;
Sandblast external surface.
A
F
A B
C
B
D G
E
F
C
Standard specifications
A B C F
Model In/Out Vent
(mm) (mm) (mm) (mm) Standard specifications
0.3M 3 φ550 1220 1830 250 3/4＂ 3/4＂
Model A B C D E F Drain
0.5M 3 φ700 1220 1910 250 3/4＂ 3/4＂
1M 3 φ1000 1220 2110 300 1＂ 3/4＂ BN-HE-45 302 149 151 φ89 38 1＂ 3/4＂
2M 3 φ1300 1500 2540 300 1＂ 3/4＂ BN-HE-70 403 149 249 φ89 38 1＂ 3/4＂
3M 3 φ1600 1500 2690 300 1-1/2＂ 3/4＂ BN-HE-130 490 149 300 φ89 38 1-1/2＂ 3/4＂
4M 3 φ1600 2000 3190 300 1-1/2＂ 3/4＂ BN-HE-180 442 165 276 φ105 40 1-1/2＂ 1＂
5M 3 φ1800 2000 3290 300 1-1/2＂ 3/4＂ BN-HE-250 571 165 405 φ105 40 1-1/2＂ 1＂
6M 3 φ1900 2000 3390 350 1-1/2＂ 3/4＂ BN-HE-300 700 165 534 φ105 40 1-1/2＂ 1＂
8M 3 φ2000 2500 3940 350 2＂ 3/4＂ BN-HE-500 1166 165 1000 φ105 57 2＂ 1＂
10M 3 φ2200 2400 3940 350 2＂ 3/4＂ BN-HE-1000 968 204 764 φ133 57 2＂ 2＂
