机械过滤器 离子交换器
1. 材质 SUS304, SUS316L; Q235;
1. 材质 SUS304, SUS316L; Q235;
2. 最大工作压力 100 Psi;
2. 最大设计工作压力 100 Psi;
3. 表面抛光处理或亚光处理。
3. 表面抛光处理或亚光处理。

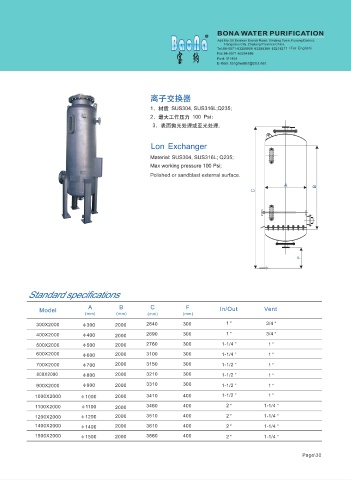

Lon Exchanger
Mechanical Filter
Material: SUS304, SUS316L; Q235;
(Sand Filter & Active Carbon Filter)
Max working pressure 100 Psi;
Material: SUS304, SUS316L, Q235; B
C A Polished or sandblast external surface.
Max design working pressure 100 Psi;
A B
Polished or sandblast external surface. C
F
Standard specifications
A B C F F
Model (mm) (mm) (mm) (mm) In/Out Vent
300X1200 φ300 1200 1800 300 1＂ 3/4＂
400X1500 φ400 1500 2150 300 1＂ 3/4＂
500X1500 φ500 1500 2230 300 1-1/4＂ 1＂ Standard specifications
600X1500 φ600 1500 2290 300 1-1/4＂ 1＂
Model A B C F In/Out Vent
700X1500 φ700 1500 2340 300 1-1/2＂ 1＂ (mm) (mm) (mm) (mm)
800X1500 φ800 1500 2390 300 1-1/2＂ 1＂ 300X2000 φ300 2000 2640 300 1＂ 3/4＂
900X1500 φ900 1500 2600 300 1-1/2＂ 1＂ 400X2000 φ400 2000 2690 300 1＂ 3/4＂
1000X1500 φ1000 1500 2750 400 1-1/2＂ 1＂ 500X2000 φ500 2000 2760 300 1-1/4＂ 1＂
1100X1500 φ1100 1500 2800 400 2＂ 1-1/4＂ 600X2000 φ600 2000 3100 300 1-1/4＂ 1＂
1200X1500 φ1200 1500 2850 400 2＂ 1-1/4＂ 700X2000 φ700 2000 3150 300 1-1/2＂ 1＂
1400X1500 φ1400 1500 2950 400 2＂ 1-1/4＂ 800X2000 φ800 2000 3210 300 1-1/2＂ 1＂
1500X1800 φ1500 1800 3360 400 2＂ 1-1/4＂ 900X2000 φ900 2000 3310 300 1-1/2＂ 1＂
1600X1800 φ1600 1800 3500 400 2-1/2＂ 1-1/2＂ 1000X2000 φ1000 2000 3410 400 1-1/2＂ 1＂
1800X1800 φ1800 1800 3610 400 2-1/2＂ 1-1/2＂ 1100X2000 φ1100 2000 3460 400 2＂ 1-1/4＂
2000X1800 φ2000 1800 3710 400 3＂ 1-1/2＂ 1200X2000 φ1200 2000 3510 400 2＂ 1-1/4＂
2200X1800 φ2200 1800 3810 400 3＂ 1-1/2＂ 1400X2000 φ1400 2000 3610 400 2＂ 1-1/4＂
2500X2000 φ2500 2000 3860 400 3＂ 1-1/2＂ 1500X2000 φ1500 2000 3660 400 2＂ 1-1/4＂
