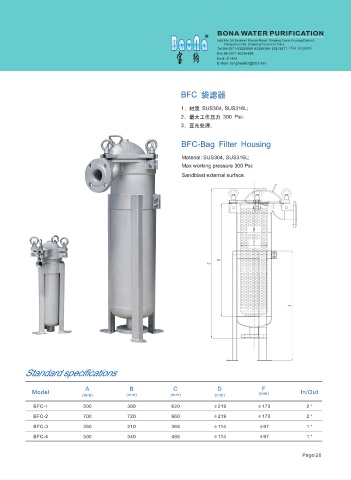

BFC 袋滤器
1. 材质 SUS304, SUS316L;
BFH袋滤器 2. 最大工作压力 300 Psi;
3. 亚光处理。
1. 材质 SUS304, SUS316L;
2. 最大工作压力 150 Psi;
3. 表面抛光处理或亚光处理。 BFC-Bag Filter Housing
Material: SUS304, SUS316L;
BFH-Bag Filter Housing Max working pressure 300 Psi;
Sandblast external surface.
Material: SUS304, SUS316L;
Max working pressure 150 Psi;
Polished or sandblast external surface .
D
F B C
D
F C
A
B
A
Standard specifications Standard specifications
A B C D F A B C D F
Model (mm) In/Out Model (mm) In/Out
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
BFH-1 500 380 720 φ219 φ170 1＂ -3＂ BFC-1 500 380 620 φ219 φ170 2＂
BFH-2 700 720 1070 φ219 φ170 1＂ -3＂ BFC-2 700 720 960 φ219 φ170 2＂
BFH-3 350 210 430 φ114 φ97 3/4＂ -2＂ BFC-3 350 210 365 φ114 φ97 1＂
BFH-4 500 340 580 φ114 φ97 3/4＂ -2＂ BFC-4 500 340 485 φ114 φ97 1＂
