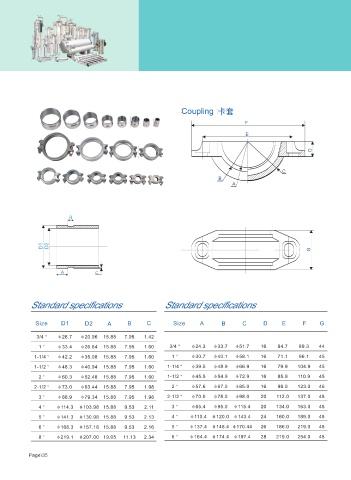

Coupling 卡套

F
E

D

C
B
A

B
Standard specifications Standard specifications

Size φ A B C E Size φ A B
D1 D2
G 3/4＂ 19.05 50.5 43.5 16.5 21.0 1＂ -1 1/2＂ 19-38 53.5 44.5
1＂ 25.4 50.5 43.5 22.4 21.0 2＂ 50.8 66.5 57.5

1-1/4＂ 31.8 50.5 43.5 28.8 21.0 2-1/2＂ 63.5 81.0 72.0
A c
1-1/2＂ 38.1 50.5 43.5 35.1 21.0 3＂ 76.2 94.0 85.0
2＂ 50.8 64.0 56.5 47.8 21.0 3-1/2＂ 89.1 108.0 102.0
2-1/2＂ 63.5 77.5 70.5 59.5 21.0 4＂ 101.6 122.0 113.0
Standard specifications Standard specifications
3＂ 76.2 91.0 83.5 72.3 21.0
3-1/2＂ 88.9 106.0 97.0 85.1 21.0
Size D1 D2 A B C Size A B C D E F G
4＂ 101.6 119.0 110.0 97.6 21.0
3/4＂ φ26.7 φ20.96 15.88 7.95 1.42
1＂ φ33.4 φ26.64 15.88 7.95 1.60 3/4＂ φ24.3 φ33.7 φ51.7 16 64.7 89.3 44 Accessories 配件
1-1/4＂ φ42.2 φ35.08 15.88 7.95 1.60 1＂ φ30.7 φ40.1 φ58.1 16 71.1 96.1 45
1-1/2＂ φ48.3 φ40.94 15.88 7.95 1.60 1-1/4＂ φ39.5 φ48.9 φ66.9 16 79.9 104.9 45
2＂ φ60.3 φ52.48 15.88 7.95 1.60 1-1/2＂ φ45.5 φ54.9 φ72.9 16 85.9 110.9 45

2-1/2＂ φ73.0 φ63.44 15.88 7.95 1.98 2＂ φ57.6 φ67.0 φ85.0 16 98.0 123.0 46
3＂ φ88.9 φ79.34 15.88 7.95 1.98 2-1/2＂ φ70.0 φ78.0 φ98.0 20 112.0 137.0 48
4＂ φ114.3 φ103.98 15.88 9.53 2.11 3＂ φ85.4 φ95.0 φ115.4 20 134.0 163.0 48
5＂ φ141.3 φ130.98 15.88 9.53 2.13 4＂ φ110.4 φ120.0 φ143.4 24 160.0 189.0 48
6＂ φ168.3 φ157.18 15.88 9.53 2.16 5＂ φ137.4 φ148.4 φ170.44 26 186.0 219.0 48
8＂ φ219.1 φ207.00 19.05 11.13 2.34 6＂ φ164.4 φ174.4 φ197.4 28 219.0 254.0 48
