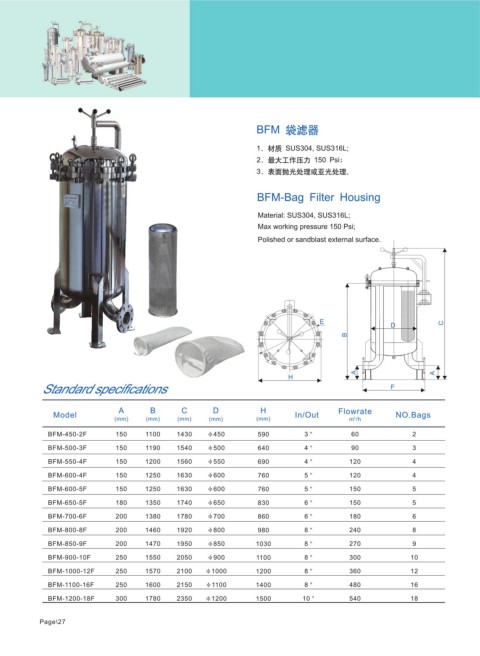

BFM 袋滤器 篮式过滤器

1. 材质 SUS304, SUS316L; 1. 材质 SUS304,SUS316L;
2. 最大工作压力 150 Psi; 2. 最大工作压力 150Psi;
3. 表面抛光处理或亚光处理。 3. 表面抛光处理或亚光处理。

BFM-Bag Filter Housing Basket filter

Material: SUS304, SUS316L; Material: SUS304, SUS316L;
Max working pressure 150 Psi; Max working pressure 150 Psi;
Polished or sandblast external surface. Polished or sandblast external surface .

E C
D
B

A A
H
Standard specifications F
Standard specifications
A B C D H Flowrate
Model In/Out NO.Bags
3
(mm) (mm) (mm) (mm) (mm) m /h D L H1 H2 H3 Flowrate
Model Vent Drain
(mm) (mm) (mm) (mm) (mm) m /h
3
BFM-450-2F 150 1100 1430 φ450 590 3＂ 60 2
BFM-500-3F 150 1190 1540 φ500 640 4＂ 90 3 DN25 114 280 160 260 340 6
BFM-550-4F 150 1200 1560 φ550 690 4＂ 120 4 DN32 114 280 165 270 350 8
DN40 114 280 180 300 380 11
BFM-600-4F 150 1250 1630 φ600 760 5＂ 120 4
DN50 114 280 180 300 380 ″ 18
BFM-600-5F 150 1250 1630 φ600 760 5＂ 150 5
BFM-650-5F 180 1350 1740 φ650 830 6＂ 150 5 DN65 133 330 220 350 430 32
BFM-700-6F 200 1380 1780 φ700 860 6＂ 180 6 DN80 159 340 260 400 480 44
DN100 219 420 310 470 550 65
BFM-800-8F 200 1460 1920 φ800 980 8＂ 240 8
DN125 273 500 430 620 700 100
BFM-850-9F 200 1470 1950 φ850 1030 8＂ 270 9
BFM-900-10F 250 1550 2050 φ900 1100 8＂ 300 10 DN150 273 500 430 620 700 3 142
BFM-1000-12F 250 1570 2100 φ1000 1200 8＂ 360 12 DN200 325 560 530 780 860 270
DN250 426 660 640 930 1010 420
BFM-1100-16F 250 1600 2150 φ1100 1400 8＂ 480 16
DN300 478 750 840 1200 1280 592
BFM-1200-18F 300 1780 2350 φ1200 1500 10＂ 540 18
