品质四福 动力无限
Quality Sifu Unlimited Power

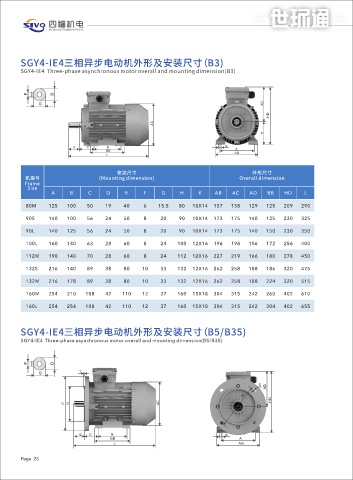

SGY4-IE4三相异步电动机外形及安装尺⼨（B3) 安装尺⼨ B5安装⽅式 外形尺⼨
SGY4-IE4 Three-phase asynchronous motor overall and mounting dimension(B3) 机座号 (Mounting dimension) Mounting dimension for Overall dimension
Frame B5(V1\V3)
Size
A B C D E F G H K M N P S T AB AC AD BB HD L
80 125 100 50 19 40 6 15.5 80 10X14 130 110 160 M8 3.5 157 158 129 125 209 290
90S 140 100 56 24 50 8 20 90 10X14 130 110 160 M8 3.5 173 175 140 125 230 325
90L 140 125 56 24 50 8 20 90 10X14 130 110 160 M8 3.5 173 175 140 150 230 350
100L 160 140 63 28 60 8 24 100 12X16 165 130 200 M10 3.5 196 198 156 172 256 400
112M 190 140 70 28 60 8 24 112 12X16 165 130 200 M10 3.5 227 219 166 180 278 450
132S 216 140 89 38 80 10 33 132 12X16 215 180 250 M12 4 262 258 188 186 320 475
安装尺⼨ 外形尺⼨ 132M 216 178 89 38 80 10 33 132 12X16 215 180 250 M12 4 262 258 188 224 320 515
机座号 (Mounting dimension) Overall dimension
Frame
Size 160M 254 210 108 42 110 12 37 160 15X18 265 230 300 M12 4 304 315 242 260 402 610
A B C D E F G H K AB AC AD BB HD L
160L 254 254 108 42 110 12 37 160 15X18 265 230 300 M12 4 304 315 242 304 402 655
80M 125 100 50 19 40 6 15.5 80 10X14 157 158 129 125 209 290
90S 140 100 56 24 50 8 20 90 10X14 173 175 140 125 230 325
90L 140 125 56 24 50 8 20 90 10X14 173 175 140 150 230 350 SGY4-IE4三相异步电动机外形及安装尺⼨（B14A/B34A)
SGY4-IE4 Three-phase asynchronous motor overall and mounting dimension(B14A/B34A)
100L 160 140 63 28 60 8 24 100 12X16 196 198 156 172 256 400
112M 190 140 70 28 60 8 24 112 12X16 227 219 166 180 278 450
132S 216 140 89 38 80 10 33 132 12X16 262 258 188 186 320 475
132M 216 178 89 38 80 10 33 132 12X16 262 258 188 224 320 515
160M 254 210 108 42 110 12 37 160 15X18 304 315 242 260 402 610
160L 254 254 108 42 110 12 37 160 15X18 304 315 242 304 402 655
SGY4-IE4三相异步电动机外形及安装尺⼨（B5/B35)
SGY4-IE4 Three-phase asynchronous motor overall and mounting dimension(B5/B35)
