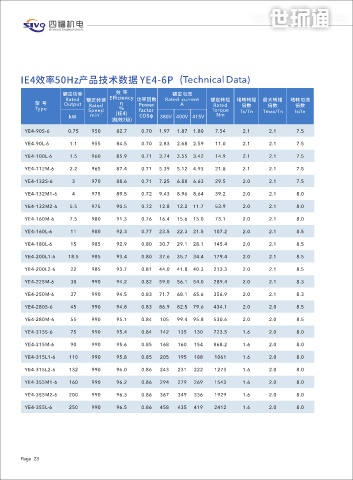

IE4效率50Hz产品技术数据 YE4-6P (Technical Data) IE4效率50Hz产品技术数据 YE4-8P (Technical Data)
额定功率 效 率 额定电流 额定功率 效 率 额定电流
Rated 额定转速 Efficiency 功率因数 Rated current 额定转矩 堵转转矩 最⼤转矩 堵转电流 Rated 额定转速 Efficiency 功率因数 Rated current 额定转矩 堵转转矩 最⼤转矩 堵转电流
型 号 Output Rated η Power A Rated 倍数 倍数 倍数 型 号 Output Rated η Power A Rated 倍数 倍数 倍数
Type Speed % factor Torque Ts/Tn Tmax/Tn Is/In Type Speed % factor Torque Ts/Tn Tmax/Tn Is/In
kW min -1 (IE4) COSφ 380V 400V 415V Nm kW min -1 (IE4) COSφ 380V 400V 415V Nm
(能效2级) (能效2级)
YE4-90S-6 0.75 950 82.7 0.70 1.97 1.87 1.80 7.54 2.1 2.1 7.5 YE4-100L1-8 0.75 700 78.4 0.66 2.20 2.09 2.02 10.2 2.0 2.0 7.0
YE4-90L-6 1.1 955 84.5 0.70 2.83 2.68 2.59 11.0 2.1 2.1 7.5 YE4-100L2-8 1.1 700 80.8 0.67 3.09 2.93 2.83 15.0 2.0 2.0 7.0
YE4-100L-6 1.5 960 85.9 0.71 3.74 3.55 3.42 14.9 2.1 2.1 7.5 YE4-112M-8 1.5 710 82.6 0.69 4.00 3.80 3.66 20.2 2.0 2.0 7.0
YE4-112M-6 2.2 965 87.4 0.71 5.39 5.12 4.93 21.8 2.1 2.1 7.5 YE4-132S-8 2.2 720 84.5 0.70 5.65 5.37 5.17 29.2 1.8 2.0 7.5
YE4-132S-6 3 970 88.6 0.71 7.25 6.88 6.63 29.5 2.0 2.1 7.5 YE4-132M-8 3 720 85.9 0.70 7.58 7.20 6.94 39.8 1.8 2.0 7.8
YE4-132M1-6 4 975 89.5 0.72 9.43 8.96 8.64 39.2 2.0 2.1 8.0 YE4-160M1-8 4 730 87.1 0.71 9.83 9.34 9.00 52.3 1.8 2.0 7.9
YE4-132M2-6 5.5 975 90.5 0.72 12.8 12.2 11.7 53.9 2.0 2.1 8.0 YE4-160M2-8 5.5 730 88.3 0.72 13.1 12.5 12.0 72.0 1.8 2.0 8.1
YE4-160M-6 7.5 980 91.3 0.76 16.4 15.6 15.0 73.1 2.0 2.1 8.0 YE4-160L-8 7.5 730 89.3 0.74 17.2 16.4 15.8 98.1 1.8 2.0 7.8
YE4-160L-6 11 980 92.3 0.77 23.5 22.3 21.5 107.2 2.0 2.1 8.5 YE4-180L-8 11 735 90.4 0.74 25 23.7 22.9 142.9 1.8 2.0 7.9
YE4-180L-6 15 985 92.9 0.80 30.7 29.1 28.1 145.4 2.0 2.1 8.5 YE4-200L-8 15 735 91.2 0.75 33.3 31.7 30.5 194.9 1.8 2.0 8.0
YE4-200L1-6 18.5 985 93.4 0.80 37.6 35.7 34.4 179.4 2.0 2.1 8.5 YE4-225S-8 18.5 735 91.7 0.75 40.9 38.8 37.4 240.4 1.8 2.0 8.1
YE4-200L2-6 22 985 93.7 0.81 44.0 41.8 40.3 213.3 2.0 2.1 8.5 YE4-225M-8 22 735 92.1 0.76 47.8 45.4 43.7 285.9 1.8 2.0 8.3
YE4-225M-6 30 990 94.2 0.82 59.0 56.1 54.0 289.4 2.0 2.1 8.3 YE4-250M-8 30 735 92.7 0.77 63.9 60.7 58.5 389.8 1.8 2.0 7.9
YE4-250M-6 37 990 94.5 0.83 71.7 68.1 65.6 356.9 2.0 2.1 8.3 YE4-280S-8 37 740 93.1 0.78 77.4 73.5 70.9 477.5 1.8 2.0 7.9
YE4-280S-6 45 990 94.8 0.83 86.9 82.5 79.6 434.1 2.0 2.0 8.5 YE4-280M-8 45 740 93.4 0.78 93.8 89.2 85.9 580.7 1.8 2.0 7.9
YE4-280M-6 55 990 95.1 0.84 105 99.4 95.8 530.6 2.0 2.0 8.5 YE4-315S-8 55 740 93.7 0.80 111 106 102 709.8 1.6 2.0 8.2
YE4-315S-6 75 990 95.4 0.84 142 135 130 723.5 1.6 2.0 8.0 YE4-315M-8 75 740 94.2 0.80 151 144 138 967.9 1.6 2.0 7.6
YE4-315M-6 90 990 95.6 0.85 168 160 154 868.2 1.6 2.0 8.0 YE4-315L1-8 90 740 94.4 0.81 179 170 164 1161 1.6 2.0 7.7
YE4-315L1-6 110 990 95.8 0.85 205 195 188 1061 1.6 2.0 8.0 YE4-315L2-8 110 740 94.7 0.81 218 207 200 1420 1.6 2.0 7.7
YE4-315L2-6 132 990 96.0 0.86 243 231 222 1273 1.6 2.0 8.0 YE4-355M1-8 132 740 94.9 0.81 261 248 239 1704 1.6 2.0 7.7
YE4-355M1-6 160 990 96.2 0.86 294 279 269 1543 1.6 2.0 8.0 YE4-355M2-8 160 740 95.1 0.82 312 296 285 2065 1.6 2.0 7.7
YE4-355M2-6 200 990 96.3 0.86 367 349 336 1929 1.6 2.0 8.0 YE4-355L-8 200 740 95.4 0.82 388 369 356 2581 1.6 2.0 7.8
YE4-355L-6 250 990 96.5 0.86 458 435 419 2412 1.6 2.0 8.0
