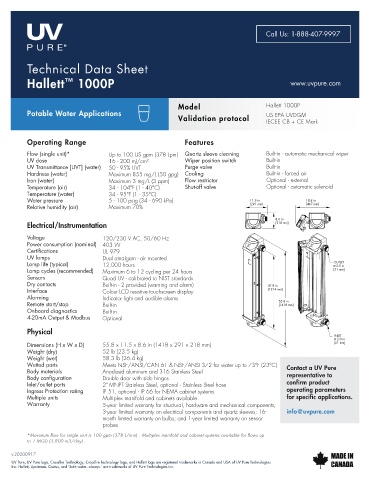

Technical Data Sheet

Hallett 1000P www.uvpure.com
™

Model Hallett 1000P
Potable Water Applications US EPA UVDGM
Validation protocol IECEE CB + CE Mark

Operating Range Features

Flow (single unit)* Up to 100 US gpm (378 Lpm) Quartz sleeve cleaning Built-in - automatic mechanical wiper
UV dose 16 - 200 mJ/cm 2 Wiper position switch Built-in
UV Transmittance [UVT] (water) 50 - 95% UVT Purge valve Built-in
Hardness (water) Maximum 855 mg/L (50 gpg) Cooling Built-in - forced air
Iron (water) Maximum 3 mg/L (3 ppm) Flow restrictor Optional - external
Temperature (air) 34 - 104°F (1 - 40°C) Shut-off valve Optional - automatic solenoid
Temperature (water) 34 - 95°F (1 - 35°C)
Water pressure 5 - 100 psig (34 - 690 kPa) 11.5 in 18.4 in
Relative humidity (air) Maximum 70% [291 mm] [467 mm]

8.6 in
Electrical/Instrumentation [218 mm]
Voltage 120/230 V AC, 50/60 Hz
Power consumption (nominal) 403 W
Certifications UL 979
UV lamps Dual amalgam - air mounted
Lamp life (typical) 12,000 hours OUTLET
Ø 2.0 in
Lamp cycles (recommended) Maximum 6 to 12 cycling per 24 hours [51 mm]
Sensors Quad UV - calibrated to NIST standards
Dry contacts Built-in - 2 provided (warning and alarm) 47.8 in
Interface Colour LCD resistive touchscreen display [1214 mm]
Alarming Indicator light and audible alarms
Remote start/stop Built-in 55.8 in
[1418 mm]
Onboard diagnostics Built-in
4-20mA Output & Modbus Optional
Physical
INLET
Ø 2.0 in
Dimensions (H x W x D) 55.8 x 11.5 x 8.6 in (1418 x 291 x 218 mm) [51 mm]
Weight (dry) 52 lb (23.5 kg)
Weight (wet) 58.3 lb (26.4 kg)
Wetted parts Meets NSF/ANSI/CAN 61 & NSF/ANSI 372 for water up to 73°F (23°C) Contact a UV Pure
Body materials Anodized aluminum and 316 Stainless Steel
Body configuration Double door with side hinges representative to
Inlet/outlet ports 2" MNPT Stainless Steel, optional - Stainless Steel hose confirm product
Ingress Protection rating IP 51, optional - IP 66 for NEMA cabinet systems operating parameters
Multiple units Multiplex manifold and cabinets available for specific applications.
Warranty 5-year limited warranty for structural, hardware and mechanical components;
3-year limited warranty on electrical components and quartz sleeves; 16- info@uvpure.com
month limited warranty on bulbs; and 1-year limited warranty on sensor
probes
*Maximum flow for single unit is 100 gpm (378 L/min) . Multiplex manifold and cabinet systems available for flows up
to 1 MGD (3,800 m3/day) .

v.20200917
UV Pure, UV Pure logo, Crossfire Technology, Crossfire Technology logo, and Hallett logo are registered trademarks in Canada and USA of UV Pure Technologies
Inc. Hallett, Upstream, Cactus, and 'Safe water. always.' are trademarks of UV Pure Technologies Inc.
