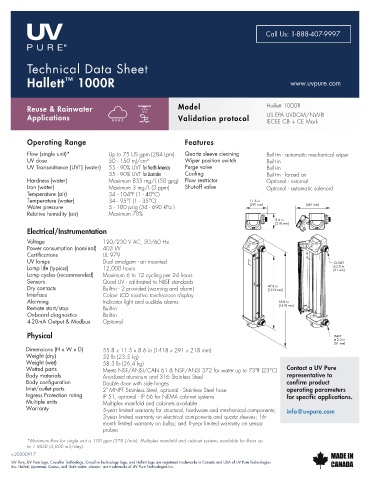

Technical Data Sheet

Hallett 1000R www.uvpure.com
™

Reuse & Rainwater Model Hallett 1000R
Applications Validation protocol US EPA UVDGM/NWRI
IECEE CB + CE Mark

Operating Range Features

Flow (single unit)* Up to 75 US gpm (284 Lpm) Quartz sleeve cleaning Built-in - automatic mechanical wiper
UV dose 50 - 150 mJ/cm 2 Wiper position switch Built-in
UV Transmittance [UVT] (water) 55 - 90% UVT for North America Purge valve Built-in
35 - 90% UVT for Australia Cooling Built-in - forced air
Hardness (water) Maximum 855 mg/L (50 gpg) Flow restrictor Optional - external
Iron (water) Maximum 3 mg/L (3 ppm) Shut-off valve Optional - automatic solenoid
Temperature (air) 34 - 104°F (1 - 40°C)
Temperature (water) 34 - 95°F (1 - 35°C) 11.5 in
Water pressure 5 - 100 psig (34 - 690 kPa ) [291 mm] [467 mm]
Relative humidity (air) Maximum 70%
8.6 in
[218 mm]
Electrical/Instrumentation
Voltage 120/230 V AC, 50/60 Hz
Power consumption (nominal) 403 W
Certifications UL 979
UV lamps Dual amalgam - air mounted OUTLET
Lamp life (typical) 12,000 hours Ø 2.0 in
[51 mm]
Lamp cycles (recommended) Maximum 6 to 12 cycling per 24 hours
Sensors Quad UV - calibrated to NIST standards
Dry contacts Built-in - 2 provided (warning and alarm) 47.8 in
[1214 mm]
Interface Colour LCD resistive touchscreen display
Alarming Indicator light and audible alarms 55.8 in
Remote start/stop Built-in [1418 mm]
Onboard diagnostics Built-in
4-20mA Output & Modbus Optional
Physical INLET
Ø 2.0 in
[51 mm]
Dimensions (H x W x D) 55.8 x 11.5 x 8.6 in (1418 x 291 x 218 mm)
Weight (dry) 52 lb (23.5 kg)
Weight (wet) 58.3 lb (26.4 kg)
Wetted parts Meets NSF/ANSI/CAN 61 & NSF/ANSI 372 for water up to 73°F (23°C) Contact a UV Pure
Body materials Anodized aluminum and 316 Stainless Steel representative to
Body configuration Double door with side hinges confirm product
Inlet/outlet ports 2" MNPT Stainless Steel, optional - Stainless Steel hose operating parameters
Ingress Protection rating IP 51, optional - IP 66 for NEMA cabinet systems for specific applications.
Multiple units Multiplex manifold and cabinets available
Warranty 5-year limited warranty for structural, hardware and mechanical components; info@uvpure.com
3-year limited warranty on electrical components and quartz sleeves; 16-
month limited warranty on bulbs; and 1-year limited warranty on sensor
probes
*Maximum flow for single unit is 100 gpm (378 L/min). Multiplex manifold and cabinet systems available for flows up
to 1 MGD (3,800 m3/day).
v.20200917
