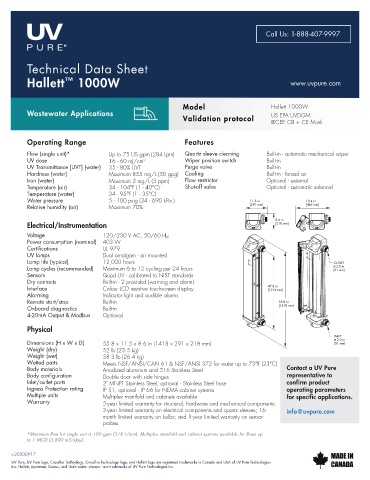

Technical Data Sheet

Hallett 1000W www.uvpure.com
™

Model Hallett 1000W
Wastewater Applications US EPA UVDGM
Validation protocol
IECEE CB + CE Mark

Operating Range Features

Flow (single unit)* Up to 75 US gpm (284 Lpm) Quartz sleeve cleaning Built-in - automatic mechanical wiper
UV dose 16 - 60 mJ/cm 2 Wiper position switch Built-in
UV Transmittance [UVT] (water) 35 - 80% UVT Purge valve Built-in
Hardness (water) Maximum 855 mg/L (50 gpg) Cooling Built-in - forced air
Iron (water) Maximum 3 mg/L (3 ppm) Flow restrictor Optional - external
Temperature (air) 34 - 104°F (1 - 40°C) Shut-off valve Optional - automatic solenoid
Temperature (water) 34 - 95°F (1 - 35°C)
Water pressure 5 - 100 psig (34 - 690 kPa ) 11.5 in 18.4 in
Relative humidity (air) Maximum 70% [291 mm] [467 mm]

8.6 in
Electrical/Instrumentation [218 mm]
Voltage 120/230 V AC, 50/60 Hz
Power consumption (nominal) 403 W
Certifications UL 979
UV lamps Dual amalgam - air mounted
Lamp life (typical) 12,000 hours OUTLET
Lamp cycles (recommended) Maximum 6 to 12 cycling per 24 hours Ø 2.0 in
[51 mm]
Sensors Quad UV - calibrated to NIST standards
Dry contacts Built-in - 2 provided (warning and alarm)
Interface Colour LCD resistive touchscreen display 47.8 in
[1214 mm]
Alarming Indicator light and audible alarms
Remote start/stop Built-in 55.8 in
Onboard diagnostics Built-in [1418 mm]
4-20mA Output & Modbus Optional

Physical
INLET
Dimensions (H x W x D) 55.8 x 11.5 x 8.6 in (1418 x 291 x 218 mm) Ø 2.0 in
[51 mm]
Weight (dry) 52 lb (23.5 kg)
Weight (wet) 58.3 lb (26.4 kg)
Wetted parts Meets NSF/ANSI/CAN 61 & NSF/ANSI 372 for water up to 73°F (23°C)
Body materials Anodized aluminum and 316 Stainless Steel Contact a UV Pure
Body configuration Double door with side hinges representative to
Inlet/outlet ports 2" MNPT Stainless Steel, optional - Stainless Steel hose confirm product
Ingress Protection rating IP 51, optional - IP 66 for NEMA cabinet systems operating parameters
Multiple units Multiplex manifold and cabinets available for specific applications.
Warranty 5-year limited warranty for structural, hardware and mechanical components;
3-year limited warranty on electrical components and quartz sleeves; 16- info@uvpure.com
month limited warranty on bulbs; and 1-year limited warranty on sensor
probes
*Maximum flow for single unit is 100 gpm (378 L/min). Multiplex manifold and cabinet systems available for flows up
to 1 MGD (3,800 m3/day).

v.20200917
