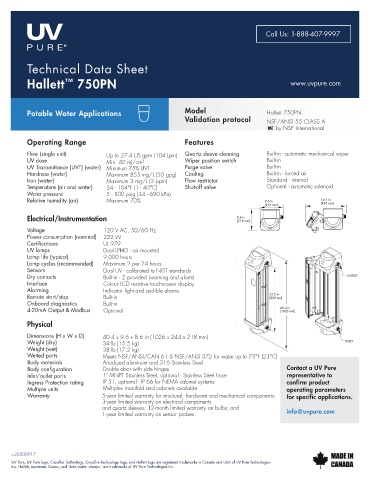

Technical Data Sheet

Hallett 750PN www.uvpure.com
™

Potable Water Applications Model Hallett 750PN
Validation protocol NSF/ANSI 55 CLASS A
by NSF International
Operating Range Features

Flow (single unit) Up to 27.4 US gpm (104 Lpm) Quartz sleeve cleaning Built-in - automatic mechanical wiper
UV dose Min. 40 mJ/cm 2 Wiper position switch Built-in
UV Transmittance [UVT] (water) Minimum 75% UVT Purge valve Built-in
Hardness (water) Maximum 855 mg/L (50 gpg) Cooling Built-in - forced air
Iron (water) Maximum 3 mg/L (3 ppm) Flow restrictor Standard - internal
Temperature (air and water) 34 - 104°F (1 - 40°C) Shut-off valve Optional - automatic solenoid
Water pressure 5 - 100 psig (34 - 690 kPa)
Relative humidity (air) Maximum 70% 9.6 in 16.5 in
[244 mm] [420 mm]
Electrical/Instrumentation 8.6 in
[218 mm]
Voltage 120 V AC, 50/60 Hz
Power consumption (nominal) 222 W
Certifications UL 979
UV lamps Dual LPHO - air mounted
Lamp life (typical) 9,000 hours
Lamp cycles (recommended) Maximum 2 per 24 hours
Sensors Dual UV - calibrated to NIST standards
Dry contacts Built-in - 2 provided (warning and alarm) OUTLET
Interface Colour LCD resistive touchscreen display
Alarming Indicator light and audible alarms
Remote start/stop Built-in 33.5 in
[850 mm]
Onboard diagnostics Built-in
4-20mA Output & Modbus Optional 40.4 in
[1026 mm]
Physical
Dimensions (H x W x D) 40.4 x 9.6 x 8.6 in (1026 x 244 x 218 mm)
Weight (dry) 34 lb (15.5 kg) INLET
Weight (wet) 38 lb (17.2 kg)
Wetted parts Meets NSF/ANSI/CAN 61 & NSF/ANSI 372 for water up to 73°F (23°C)
Body materials Anodized aluminum and 316 Stainless Steel
Body configuration Double door with side hinges Contact a UV Pure
Inlet/outlet ports 1" MNPT Stainless Steel, optional - Stainless Steel hose representative to
Ingress Protection rating IP 51, optional - IP 66 for NEMA cabinet systems confirm product
Multiple units Multiplex manifold and cabinets available operating parameters
Warranty 5-year limited warranty for structural, hardware and mechanical components; for specific applications.
3-year limited warranty on electrical components
and quartz sleeves; 12-month limited warranty on bulbs; and
1-year limited warranty on sensor probes info@uvpure.com
