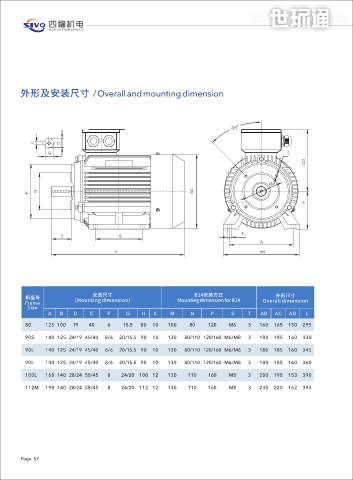

外形及安装尺⼨ / Overall and mounting dimension 外形及安装尺⼨ / Overall and mounting dimension
安装尺⼨ B14安装⽅式 外形尺⼨ 安装尺⼨ B14安装⽅式 外形尺⼨
机座号 机座号
Frame (Mounting dimension) Mounting dimension for B14 Overall dimension Frame (Mounting dimension) Mounting dimension for B14 Overall dimension
Size Size
A B D E F G H K M N P S T AB AC AD L A B D E F G H K M N P S T AB AC AD L
80 125 100 19 40 6 15.5 80 10 100 80 120 M6 3 160 165 150 295 90S 140 100 24/19 45/40 8/6 20/15.5 90 10 130 80/110 120/160 M6/M8 3 173 175 137 310
90S 140 125 24/19 45/40 8/6 20/15.5 90 10 130 80/110 120/160 M6/M8 3 180 185 160 330 90L 140 125 24/19 45/40 8/6 20/15.5 90 10 130 80/110 120/160 M6/M8 3 173 175 137 335
90L 140 125 24/19 45/40 8/6 20/15.5 90 10 130 80/110 120/160 M6/M8 3 180 185 160 345 100L 160 140 28/24 58/45 8 24/20 100 12 130 110 160 M8 3 196 195 151 385
90L 140 125 24/19 45/40 8/6 20/15.5 90 10 130 80/110 120/160 M6/M8 3 180 185 160 360 112M 190 140 28/24 58/45 8 24/20 112 12 130 110 160 M8 3 227 219 169 405
100L 160 140 28/24 58/45 8 24/20 100 12 130 110 160 M8 3 200 198 153 390 132S 216 140 38/28 60/58 10/8 33/24 132 12 130 110 160 M8 3 262 258 188 475
112M 190 140 28/24 58/45 8 24/20 112 12 130 110 160 M8 3 230 220 162 395 132M 216 178 38/28 60/58 10/8 33/24 132 12 130 110 160 M8 3 262 258 188 515
160L 254 254 42 110 12 37 160 14.5 215 180 250 M12 4 304 315 242 655
180L 279 279 48 110 14 42.5 160 14.5 215 180 250 M12 4 349 355 267 725
