WASHER MOTOR

清洗机电机

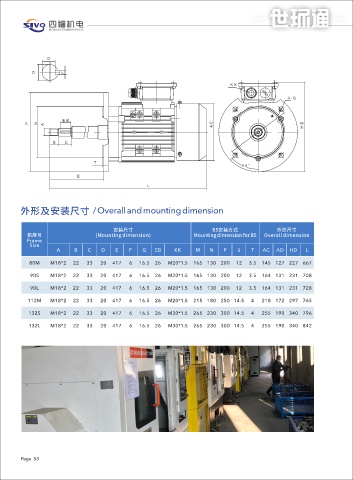

外形及安装尺⼨ / Overall and mounting dimension

安装尺⼨ B5安装⽅式 外形尺⼨
机座号 (Mounting dimension) Mounting dimension for B5 Overall dimension
Frame 1. Suitable for washing machine in the following various working
Size 1.适⽤于以下各种⼯况的清洗机：
A B C D E F G EB KK M N P S T AC AD HD L 机动⻋辆、⼯程⻋辆、⼯程机械和农业机械配套产品的清洗保养，如 conditions:Cleaning and maintenance of motor vehicles,
engineering vehicles, construction machinery and agricultural
冲洗汽⻋、推⼟机、混泥⼟搅拌机、拖拉机等。是个⼈及⼩型⻋辆养 machinery, such as washing cars, bulldozers, concrete mixers,
80M M18*2 22 33 20 417 6 16.5 26 M20*1.5 165 130 200 12 3.5 145 127 227 667
护单位清洗汽⻋、摩托⻋最为理想的清洗⼯具。建筑物外墙、地坪、 tractors, etc. It is the ideal cleaning tool for cleaning cars and
motorcycles for personal and small vehicle maintenance units.
90S M18*2 22 33 20 417 6 16.5 26 M20*1.5 165 130 200 12 3.5 164 131 231 708 浴池、游泳池清洗，对⻔窗、地⾯、厕所、油污以及⼈⼯难以清洗到 Cleaning for building, floors, baths, and swimming pools, it’s
的⻆落特别有效。⻝品加⼯⼚、⻝品加⼯机械以及宾馆、饭店的厨房 particularly effective for doors doors, windows, floors, toilets, oil
90L M18*2 22 33 20 417 6 16.5 26 M20*1.5 165 130 200 12 3.5 164 131 231 728 的消毒清洗。 stains, and corners that are difficult to clean. Disinfection and
cleaning of food processing plants, food processing machinery, and
2.电机铁⼼采⽤冷轧矽钢⽚，F级绝缘，耐热温度⾼，抗冲击性强，绝
112M M18*2 22 33 20 417 6 16.5 26 M20*1.5 215 180 250 14.5 4 218 172 297 765 kitchens of hotels and restaurants.
缘使⽤寿命⻓。 2. The motor core is made of cold-rolled silicon steel sheet, F-class
132S M18*2 22 33 20 417 6 16.5 26 M30*1.5 265 230 300 14.5 4 255 190 340 796 3.电机外壳采⽤拉伸铝合⾦，电机散热性好，端盖采⽤铸铁，结构稳 insulation, heat-resistant.
3. The motor shell is made of stretched aluminum alloy, with good
定、振动⼩、噪声低，性能稳定、安全可靠。 heat dissipation. The end cover is made of cast iron, with stable
132L M18*2 22 33 20 417 6 16.5 26 M30*1.5 265 230 300 14.5 4 255 190 340 842 structure, low vibration, low noise, stable performance, safety and
reliability.

海拔不超过1000m；(⼤于1000m海拔属于⾼原电机，可定制) The altitude does not exceed 1000m; (more than 1000m altitude
最⾼环境温度不超过40℃； belongs to the plateau motor, can be customized)
The maximum ambient temperature does not exceed 40 °C;
最低环境温度不超过15℃；
The minimum ambient temperature does not exceed -15 °C;
S1⼯作制； S1 working system;
电源电压波动不超过±5%(短时允许10%)；频率波动不超过±2%； The power supply voltage fluctuation does not exceed ± 5% (10%
is allowed for short time); the frequency fluctuation does not
绝缘等级F级；
exceed ± 2%;
防护等级：IP54、IP55； Insulation class F;
冷却⽅式：IC411； Protection level: IP54, IP55;
Cooling method: IC411;
