品质四福 动力无限
Quality Sifu Unlimited Power

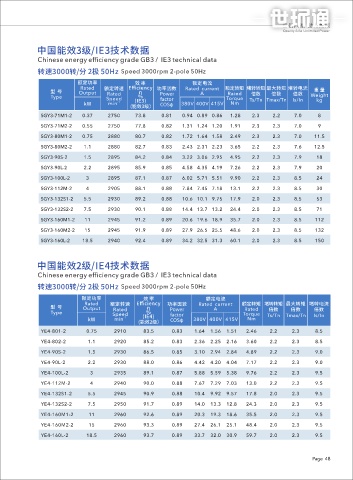

中国能效3级/IE3技术数据
Chinese energy efficiency grade GB3 / IE3 technical data
转速3000转/分 2极 50Hz Speed 3000rpm 2-pole 50Hz

额定功率 效 率 额定电流
效 率
Rated 额定转速 Efficiency 功率因数 Rated current 额定转矩 堵转转矩 最⼤转矩 堵转电流
重 量
型 号 Output Rated η Power A Rated 倍数 倍数 倍数 Weight
VERTICAL PUMP MOTOR Type Speed (IE3) factor Torque Ts/Tn Tmax/Tn Is/In kg
%
Nm
-1
min
kW
(能效3级） COSφ 380V 400V 415V
⽴式泵电机 SGY3-71M1-2 0.37 2750 73.8 0.81 0.94 0.89 0.86 1.28 2.3 2.2 7.0 8
SGY3-71M2-2 0.55 2750 77.8 0.82 1.31 1.24 1.20 1.91 2.3 2.3 7.0 9
SGY3-80M1-2 0.75 2880 80.7 0.82 1.72 1.64 1.58 2.49 2.3 2.3 7.0 11.5
SGY3-80M2-2 1.1 2880 82.7 0.83 2.43 2.31 2.23 3.65 2.2 2.3 7.6 12.5
SGY3-90S-2 1.5 2895 84.2 0.84 3.22 3.06 2.95 4.95 2.2 2.3 7.9 18
SGY3-90L-2 2.2 2895 85.9 0.85 4.58 4.35 4.19 7.26 2.2 2.3 7.9 20
SGY3-100L-2 3 2895 87.1 0.87 6.02 5.71 5.51 9.90 2.2 2.3 8.5 24
SGY3-112M-2 4 2905 88.1 0.88 7.84 7.45 7.18 13.1 2.2 2.3 8.5 30
SGY3-132S1-2 5.5 2930 89.2 0.88 10.6 10.1 9.75 17.9 2.0 2.3 8.5 53
SGY3-132S2-2 7.5 2930 90.1 0.88 14.4 13.7 13.2 24.4 2.0 2.3 8.5 71

SGY3-160M1-2 11 2945 91.2 0.89 20.6 19.6 18.9 35.7 2.0 2.3 8.5 112
SGY3-160M2-2 15 2945 91.9 0.89 27.9 26.5 25.5 48.6 2.0 2.3 8.5 132
SGY3-160L-2 18.5 2940 92.4 0.89 34.2 32.5 31.3 60.1 2.0 2.3 8.5 150

1.适⽤于以下各种⼯况的⽴式多级泵： 1.Vertical multistage pump for various working conditions.
Mainly used in multi-stage pump motors, multi-stage pumps are
主要应⽤于多级泵电机，多级泵通常⽤在机械、矿⼭、轻⼯、医药及
commonly used in machinery, mining, light industry, medicine and 中国能效2级/IE4技术数据
⻝品等领域。 food.
2.电机铁⼼采⽤冷轧矽钢⽚，F级绝缘，耐热温度⾼，抗冲击性强，绝 2.The motor core adopts cold-rolled silicon steel sheet, F-class Chinese energy efficiency grade GB3 / IE3 technical data
insulation, high heat resistance temperature, strong impact
缘使⽤寿命⻓。 Speed 3000rpm 2-pole 50Hz
resistance and long service life of insulation. 转速3000转/分 2极 50Hz
3.电机外壳采⽤压铸铝合⾦，电机散热性好，运⾏平稳、低噪⾳、振 3.The motor casing is made of die-cast aluminum alloy. The motor
动⼩，性能稳定、安全可靠，安装⽅便。 has good heat dissipation, stable operation, low noise, low 额定功率 效 率 效 率 额定电流
vibration, stable performance, safe and reliable, and convenient Rated 额定转速 Efficiency 功率因数 Rated current 额定转矩 堵转转矩 最⼤转矩 堵转电流
4.电机效率达到⾼效超⾼效⽔平，节能效果好，是理想的节能产品。 型 号 Output Rated η A Rated
installation. Type % Power 倍数 倍数 倍数
4.The motor efficiency reaches the level of high efficiency and high Speed (IE4) factor Torque Ts/Tn Tmax/Tn Is/In
Nm
-1
efficiency, and the energy saving effect is good. It is an ideal energy- kW min (能效2级） COSφ 380V 400V 415V
saving product.
YE4-801-2 0.75 2910 83.5 0.83 1.64 1.56 1.51 2.46 2.2 2.3 8.5
YE4-802-2 1.1 2920 85.2 0.83 2.36 2.25 2.16 3.60 2.2 2.3 8.5
YE4-90S-2 1.5 2930 86.5 0.85 3.10 2.94 2.84 4.89 2.2 2.3 9.0
海拔不超过1000m；(⼤于1000m海拔属于⾼原电机，可定制) The altitude does not exceed 1000m; (more than 1000m altitude
最⾼环境温度不超过40℃(＞40℃可定制)； belongs to the plateau motor, can be customized) YE4-90L-2 2.2 2930 88.0 0.86 4.42 4.20 4.04 7.17 2.2 2.3 9.0
The maximum ambient temperature does not exceed 40 °C;
最低环境温度不超过15℃(低于-15℃可定制)； YE4-100L-2 3 2935 89.1 0.87 5.88 5.59 5.38 9.76 2.2 2.3 9.5
The minimum ambient temperature does not exceed -15 °C;
S1⼯作制； S1 working system; YE4-112M-2 4 2940 90.0 0.88 7.67 7.29 7.03 13.0 2.2 2.3 9.5
电源电压波动不超过±5%(短时允许10%)；频率波动不超过±2%； The power supply voltage fluctuation does not exceed ± 5% (10%
绝缘等级F级； is allowed for short time); the frequency fluctuation does not YE4-132S1-2 5.5 2945 90.9 0.88 10.4 9.92 9.57 17.8 2.0 2.3 9.5
exceed ± 2%;
防护等级：IP55； Insulation class F; YE4-132S2-2 7.5 2950 91.7 0.89 14.0 13.3 12.8 24.3 2.0 2.3 9.5
冷却⽅式：IC411； Protection level: IP54, IP55; YE4-160M1-2 11 2960 92.6 0.89 20.3 19.3 18.6 35.5 2.0 2.3 9.5
Cooling method: IC411;
YE4-160M2-2 15 2960 93.3 0.89 27.4 26.1 25.1 48.4 2.0 2.3 9.5
YE4-160L-2 18.5 2960 93.7 0.89 33.7 32.0 30.9 59.7 2.0 2.3 9.5
