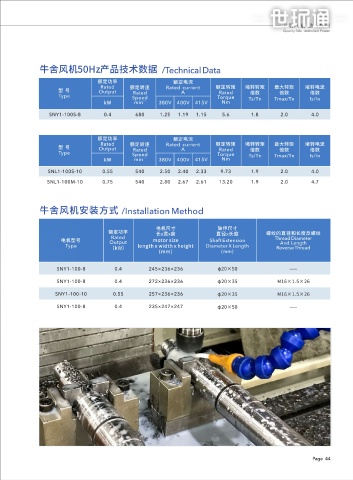

EXHAUST FAN MOTOR ⽜舍⻛机50Hz产品技术数据 /Technical Data

额定功率 额定电流
FOR COWSHED 型 号 Output 额定转速 Rated current 额定转矩 堵转转矩 最⼤转矩 堵转电流
Rated
A
Rated
Rated
倍数
倍数
倍数
Type Speed Torque Ts/Tn Tmax/Tn Is/In
⽜舍排⻛机电机 kW min -1 380V 400V 415V Nm
SNY1-100S-8 0.4 680 1.25 1.19 1.15 5.6 1.8 2.0 4.0
额定功率 额定电流
Rated 额定转速 Rated current 额定转矩 堵转转矩 最⼤转矩 堵转电流
型 号 Output Rated A Rated 倍数 倍数 倍数
Type Speed Torque Ts/Tn Tmax/Tn Is/In
kW min -1 380V 400V 415V Nm
SNL1-100S-10 0.55 540 2.50 2.40 2.33 9.73 1.9 2.0 4.0

SNL1-100M-10 0.75 540 2.80 2.67 2.61 13.20 1.9 2.0 4.7

⽜舍⻛机安装⽅式 /Installation Method

电机尺⼨ 轴伸尺⼨
额定功率 ⻓x宽x⾼ 直径x⻓度 螺纹的直径和⻓度反螺纹
Rated Thread Diameter
电机型号 Output motor size Shaft Extension And Length
Type length x width x height Diameter X Length
（kW） Reverse Thread
(mm) (mm)
SNY1-100-8 0.4 245×236×236 φ20×50 ⸺
SNY1-100-8 0.4 272×236×236 φ20×35 M16×1.5×26
1.适⽤于各种⽜舍的⻛机。 1. Suitable for fans of various cowsheds.
2.电机采⽤F级绝缘，耐热温度⾼，抗冲击性强，绝缘使⽤寿命⻓。 2.The motor adopts Class F insulation, high heat resistance SNY1-100-10 0.55 257×236×236 φ20×35 M16×1.5×26
temperature, strong impact resistance and long service life.
3.电机外壳采⽤拉伸铝合⾦或压铸铝合⾦，结构稳定、表⾯美观、散 3.The motor casing is made of tensile aluminum alloy or die-cast SNY1-100-8 0.4 235×247×247
热性好、安装使⽤⽅便，性能稳定、安全可靠。 aluminum alloy. It has stable structure, beautiful surface, good heat φ20×50 ⸺
dissipation, convenient installation and use, stable performance,
safety and reliability.

海拔不超过1000m；(⼤于1000m海拔属于⾼原电机，可定制) The altitude does not exceed 1000m; (more than 1000m altitude
最⾼环境温度不超过40℃； belongs to the plateau motor, can be customized)
The maximum ambient temperature does not exceed 40 °C;
最低环境温度不超过-15℃；
The minimum ambient temperature does not exceed -15 °C;
S1⼯作制； S1 working system;
电源电压波动不超过±5%(短时允许10%)；频率波动不超过±2%； The power supply voltage fluctuation does not exceed ± 5% (10%
绝缘等级F级； is allowed for short time); the frequency fluctuation does not
exceed ± 2%;
防护等级：IP54、IP55； Insulation class F;
冷却⽅式：IC411； Protection level: IP54, IP55;
Cooling method: IC411;
