单相电容运转异步电动机 Single-phase capacitor running asynchronous motor

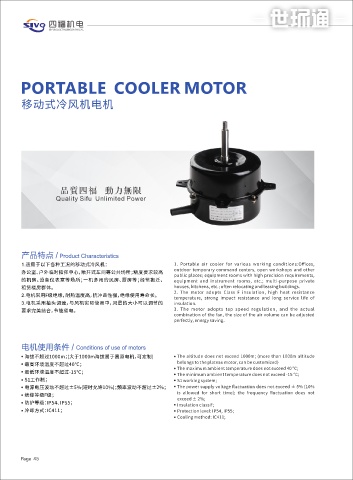

PORTABLE COOLER MOTOR 功率 电 压 频 率 电 流 转 速 功率因数 额转转矩/ 最⼤转矩/ 堵转电流
型 号
Rated
Speed
Type Output Voltage Frequency Amps (r/min) P.F. 额定转矩 额定转矩 Is/(A)
(V)
(A)
移动式冷⻛机电机 kW (Hz） Ts/Tn Tmax/Tn
SYGY-63S-4 0.06 220 50 0.75 1290 0.92 0.40 1.7 5
SYGY-80S-4 0.12 220 50 1.3 1200 0.92 0.40 1.7 7
SYGY-90S1-4 0.2 220 50 1.9 1150 0.92 0.35 1.7 10
SYGY-90S1-6 0.15 220 50 1.3 940 0.92 0.35 1.7 15
SYGY-90S2-6 0.55 220 50 3.6 880 0.92 0.33 1.7 20
SYGY-90S3-6 0.75 220 50 4.5 900 0.95 0.33 1.7 30

品质四福 动力无限
Quality Sifu Unlimited Power 单相电容运转异步电动机外形及安装尺⼨
Single-phase capacitor running asynchronous motor overall and mounting dimension

安装尺⼨ B5安装⽅式 B14安装⽅式 外形尺⼨
机座号 (Mounting dimension) Mounting dimension Mounting Dimension Overall dimension
Frame for B5(V1\V3) for B14(V18\V19)
Size
A B C D E F G H K M N P S T M N P S T AB AC AD HD L

63 100 80 40 11 23 4 8.5 63 7 115 95 140 10 3 75 60 90 M5 2.5 130 130 125 165 230
71 112 90 45 14 30 5 11 71 7 130 110 160 10 3 85 70 105 M6 2.5 145 145 140 180 255
1.适⽤于以下各种⼯况的移动式冷⻛机： 1. Portable air cooler for various working conditions:Offices,
outdoor temporary command centers, open workshops and other
办公室、⼾外临时指挥中⼼，敞开式⻋间等公共场所；精度要求较⾼ 80 125 100 50 19 40 6 15.5 80 10 165 130 200 12 3.5 100 80 120 M6 3 160 165 150 200 295
public places; equipment rooms with high precision requirements,
的机房、设备仪表室等场所；⼀机多⽤的⺠房、厨房等；经常搬迁、 equipment and instrument rooms, etc.; multi-purpose private
租赁楼房群体。 houses, kitchens, etc.; often relocating and leasing buildings. 90S 140 100 56 24 50 8 20 90 10 165 130 200 12 3.5 115 95 140 M8 3 180 185 160 240 310
2. The motor adopts Class F insulation, high heat resistance
2.电机采⽤F级绝缘，耐热温度⾼，抗冲击性强，绝缘使⽤寿命⻓。
temperature, strong impact resistance and long service life of 90L 140 125 56 24 50 8 20 90 10 165 130 200 12 3.5 115 95 140 M8 3 180 185 160 240 335
3.电机采⽤抽头调速，与⻛机实际使⽤中，⻛量的⼤⼩可以调节的 insulation.
要求完美结合，节能省电。 3. The motor adopts tap speed regulation, and the actual
combination of the fan, the size of the air volume can be adjusted
perfectly, energy saving.

海拔不超过1000m；(⼤于1000m海拔属于⾼原电机，可定制) The altitude does not exceed 1000m; (more than 1000m altitude
最⾼环境温度不超过40℃； belongs to the plateau motor, can be customized)
The maximum ambient temperature does not exceed 40 °C;
最低环境温度不超过-15℃；
The minimum ambient temperature does not exceed -15 °C;
S1⼯作制； S1 working system;
电源电压波动不超过±5%(短时允许10%)；频率波动不超过±2%； The power supply voltage fluctuation does not exceed ± 5% (10%
is allowed for short time); the frequency fluctuation does not
绝缘等级F级；
exceed ± 2%;
防护等级：IP54、IP55； Insulation class F;
冷却⽅式：IC411； Protection level: IP54, IP55;
Cooling method: IC411;
