Page 49 - IEC 电机样本

品质四福 动力无限
Quality Sifu Unlimited Power

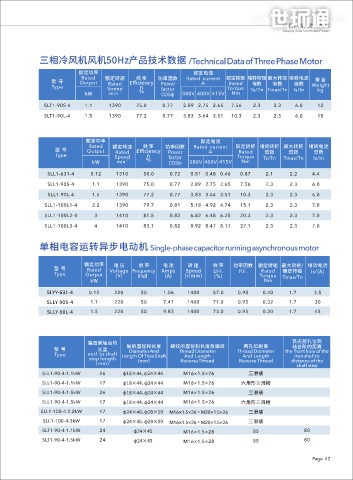

三相冷⻛机⻛机50Hz产品技术数据 /Technical Data of Three Phase Motor

额定功率 额定电流
Rated 额定转速 效 率 功率因数 Rated current 额定转矩 堵转转矩 最⼤转矩 堵转电流
重 量
型 号 Output Rated Efficiency Power A Rated 倍数 倍数 倍数 Weight
COOLING FAN MOTOR Type kW Speed % factor 380V 400V 415V Torque Ts/Tn Tmax/Tn Is/In kg
η
Nm
min
-1
COSφ
冷⻛机电机 SLT1-90S-4 1.1 1390 75.0 0.77 2.89 2.75 2.65 7.56 2.3 2.3 6.0 12
SLT1-90L-4 1.5 1390 77.2 0.77 3.83 3.64 3.51 10.3 2.3 2.3 6.0 15

额定功率 额定电流
Rated 额定转速 效 率 功率因数 Rated current 额定转矩 堵转转矩 最⼤转矩 堵转电流
型 号 Output Rated Efficiency Power A Rated 倍数 倍数 倍数
Type Speed η factor Torque Ts/Tn Tmax/Tn Is/In
kW min -1 % COSφ 380V 400V 415V Nm
SLL1-631-4 0.12 1310 50.0 0.72 0.51 0.48 0.46 0.87 2.1 2.2 4.4
SLL1-90S-4 1.1 1390 75.0 0.77 2.89 2.75 2.65 7.56 2.3 2.3 6.0
SLL1-90L-4 1.5 1390 77.2 0.77 3.83 3.64 3.51 10.3 2.3 2.3 6.0
SLL1-100L1-4 2.2 1390 79.7 0.81 5.18 4.92 4.74 15.1 2.3 2.3 7.0

SLL1-100L2-4 3 1410 81.5 0.82 6.82 6.48 6.25 20.3 2.3 2.3 7.0
1.适⽤于以下各种⼯况的冷⻛机： 1. Air coolers suitable for the following various working SLL1-100L3-4 4 1410 83.1 0.82 8.92 8.47 8.17 27.1 2.3 2.3 7.0
纺织、机械、陶瓷、精细化⼯、冶⾦、玻璃、五⾦、⽪⾰等制造业；电 conditions:Textile, machiner y, ceramics, fine chemicals,
metallurgy, glass, hardware, leather and other manufacturing
镀、电⼦、制鞋、印染、塑料、制⾐、印刷、包装、⻝品等加⼯业；医院、 industries; electroplating, electronics, footwear, printing and 单相电容运转异步电动机 Single-phase capacitor running asynchronous motor
候诊室、学校、候⻋室、超级商场、洗⾐房；厨房、菜市场、⼤型娱乐 dyeing, plastics, clothing, printing, packaging, food and other
processing industries; hospitals, waiting rooms, schools, Waiting
中⼼、地下停⻋场、⻋站等公共场所；温室、花卉、家禽、畜牧等种养
room, super mall, laundry room; kitchen, vegetable market, large
殖场； entertainment center, underground parking lot, station and other 型 号 额定功率 电 压 频 率 电 流 转 速 效 率 功率因数 额定转矩 最⼤转矩/ 堵转电流
Rated
Rated
2.电机采⽤F级绝缘，耐热温度⾼，抗冲击性强，绝缘使⽤寿命⻓。 public places; greenhouses, flowers, poultry, livestock and other Type Output Voltage Frequency Amps Speed EFF. P.F. Torque 额定转矩 Is/(A)
(V)
(%)
breeding farms; (Hz） (A) (r/min) Tmax/Tn
3.电机外壳采⽤拉伸铝合⾦，结构稳定、表⾯美观、散热性好、安装 2. The motor adopts Class F insulation, high heat resistance kW Nm
使⽤⽅便，性能稳定、安全可靠。 temperature, strong impact resistance and long service life of
insulation. SLYY-631-4 0.12 220 50 1.06 1400 57.0 0.90 0.40 1.7 3.5
3. The motor casing adopts tensile aluminum alloy, which has stable SLLY-90S-4 1.1 220 50 7.41 1400 71.0 0.95 0.32 1.7 30
structure, beautiful surface, good heat dissipation, convenient
installation and use, stable performance, safety and reliability. SLLY-90L-4 1.5 220 50 9.83 1400 73.0 0.95 0.30 1.7 45
海拔不超过1000m；(⼤于1000m海拔属于⾼原电机，可定制) The altitude does not exceed 1000m; (more than 1000m altitude
最⾼环境温度不超过40℃； belongs to the plateau motor, can be customized) 端⾯到轴台阶 铁壳前孔位到
The maximum ambient temperature does not exceed 40 °C; 型 号 轴的直径和⻓度 螺纹的直径和⻓度反螺纹 两孔位距离 轴台阶的距离
最低环境温度不超过-15℃； ⻓度 Diameter And Thread Diameter Thread Diameter the front hole of the
The minimum ambient temperature does not exceed -15 °C; Type end to shaft Length Of Thes Shaft And Length And Length iron shell to
S1⼯作制； S1 working system; step length (mm) Reverse Thread Reverse Thread distance of the
(mm)
电源电压波动不超过±5%(短时允许10%)；频率波动不超过±2%； The power supply voltage fluctuation does not exceed ± 5% (10% shaft step
绝缘等级F级； is allowed for short time); the frequency fluctuation does not SLL1-90-4-1.1kW 26 φ18×44、φ24×44 M16×1.5×26 三滑槽
exceed ± 2%;
防护等级：IP54、IP55； Insulation class F; SLL1-90-4-1.1kW 17 φ18×44、φ24×44 M16×1.5×26 六⻆形三滑槽
冷却⽅式：IC411； Protection level: IP54, IP55; SLL1-90-4-1.5kW 26 φ18×44、φ24×44 M16×1.5×26 三滑槽
Cooling method: IC411;
SLL1-90-4-1.5kW 17 φ18×44、φ24×44 M16×1.5×26 六⻆形三滑槽
SLL1-100-4-2.2kW 17 φ24×46、φ28×59 M16×1.5×26、M20×1.5×26 三滑槽
SLL1-100-4-3kW 17 φ24×46、φ28×59 M16×1.5×26、M20×1.5×26 三滑槽
SLT1-90-4-1.1kW 24 φ24×45 M16×1.5×28 85 80
SLT1-90-4-1.5kW 24 φ24×45 M16×1.5×28 85 80
