BLACKCOMB
5.1
BLACKCOMB
6.1
Replacement Lamps Municipal Low UVT BLACKCOMB 4.1
Replacement Lamps Municipal Low UVT
BLACKCOMB
Hot Water UV Sensors Replacement Parts
C Series
T

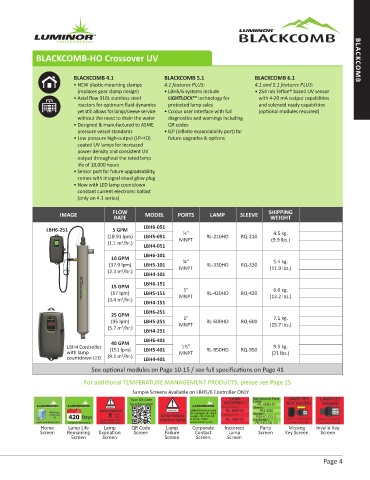

BLACKCOMB-HO Crossover UV
Hot Water UV Sensors Replacement Parts BLACKCOMB
Controller Replacement Sleeves TOC
C BLACKCOMB 5.1 BLACKCOMB 6.1
T
BLACKCOMB 4.1
• NEW plastic mounting clamps 4.1 features PLUS: 4.1 and 5.1 features PLUS:
(replaces gear clamp design) • LBH5/6 systems include • 254 nm Teflon® based UV sensor
Controller Replacement Sleeves TOC
• Axial flow 316L stainless steel LIGHTLOCK technology for with 4-20 mA output capabilities
Multi-Use Light Commercial Commercial TM
reactors for optimum fluid dynamics protected lamp sales and solenoid ready capabilities
yet still allows for lamp/sleeve service • Colour user interface with full (optional modules required)
without the need to drain the water diagnostics and warnings including
Multi-Use Light Commercial Commercial
• Designed & manufactured to ASME QR codes
pressure vessel standards • IEP (infinite expandability port) for
• Low pressure high-output (LP-HO) future upgrades & options
coated UV lamps for increased
power density and consistent UV
output throughout the rated lamp
life of 10,000 hours
• Sensor port for future upgradeability,
comes with integral visual glow plug
• Now with LED lamp countdown
constant current electronic ballast
(only on 4.1 series)

IMAGE FLOW MODEL PORTS LAMP SLEEVE SHIPPING
WEIGHT
RATE
LBH6-051
LBH6-251 5 GPM
½”
4.5 kg.
(18.91 lpm) LBH5-051 MNPT RL-210HO RQ-210 (9.9 lbs.)
3
(1.1 m /hr.) LBH4-051
LBH6-101
10 GPM ¾” 5.4 kg.
(37.9 lpm) LBH5-101 MNPT RL-330HO RQ-330 (11.9 lbs.)
(2.3 m /hr.) LBH4-101
3
15 GPM LBH6-151 1” 6.0 kg.
(57 lpm) LBH5-151 RL-420HO RQ-420
(3.4 m /hr.) MNPT (13.2 lbs.)
3
LBH4-151
25 GPM LBH6-251
(95 lpm) LBH5-251 1” RL-600HO RQ-600 7.1 kg.
(5.7 m /hr.) LBH4-251 MNPT (15.7 lbs.)
3
LBH6-401
40 GPM
LBH4 Controller 1½” 9.5 kg.
with lamp (151 lpm) LBH5-401 MNPT RL-950HO RQ-950 (21 lbs.)
3
countdown LED (9.1 m /hr.) LBH4-401
See optional modules on Page 10-15 / see full specifications on Page 41

For additional TEMPERATURE MANAGEMENT PRODUCTS, please see Page 15
Sample Screens Available on LBH5/6 Controller ONLY

LUMINOR Environmental
80 Southgate Dr. Unit 4
Guelph, ON, N1G 4P5 RSHO-B3.5
(519) 837-3800
www.luminoruv.com
Home Lamp Life Lamp QR Code Lamp Corporate Incorrect Parts Missing Invalid Key
Screen Remaining Expiration Screen Failure Contact Lamp Screen Key Screen Screen
Screen Screen Screen Screen Screen
