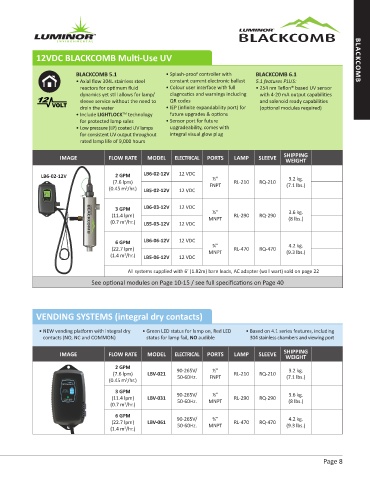

Page 13 - Luminor-2021-Product Cataglogue--English Version

BLACKCOMB
5.1
BLACKCOMB
6.1
Replacement Lamps Municipal Low UVT BLACKCOMB 4.1
BLACKCOMB
Hot Water UV Sensors Replacement Parts
C Series
T
12VDC BLACKCOMB Multi-Use UV BLACKCOMB
Controller Replacement Sleeves TOC
BLACKCOMB 5.1 • Splash-proof controller with BLACKCOMB 6.1
• Axial flow 304L stainless steel constant current electronic ballast 5.1 features PLUS:
reactors for optimum fluid • Colour user interface with full • 254 nm Teflon® based UV sensor
dynamics yet still allows for lamp/ diagnostics and warnings including with 4-20 mA output capabilities
Multi-Use Light Commercial Commercial
sleeve service without the need to QR codes and solenoid ready capabilities
drain the water • IEP (infinite expandability port) for (optional modules required)
TM
• Include LIGHTLOCK technology future upgrades & options
for protected lamp sales • Sensor port for future
• Low pressure (LP) coated UV lamps upgradeability, comes with
for consistent UV output throughout integral visual glow plug
rated lamp life of 9,000 hours

IMAGE FLOW RATE MODEL ELECTRICAL PORTS LAMP SLEEVE SHIPPING
WEIGHT

LB6-02-12V 2 GPM LB6-02-12V 12 VDC ½” 3.2 kg.
(7.6 lpm) RL-210 RQ-210
(0.45 m /hr.) LB5-02-12V 12 VDC FNPT (7.1 lbs.)
3

3 GPM LB6-03-12V 12 VDC
(11.4 lpm) ½” RL-290 RQ-290 3.6 kg.
(0.7 m /hr.) LB5-03-12V 12 VDC MNPT (8 lbs.)
3

6 GPM LB6-06-12V 12 VDC ¾” 4.2 kg.
(22.7 lpm) RL-470 RQ-470
(1.4 m /hr.) LB5-06-12V 12 VDC MNPT (9.3 lbs.)
3
All systems supplied with 6’ (1.82m) bare leads, AC adapter (wall wart) sold on page 22
See optional modules on Page 10-15 / see full specifications on Page 40

VENDING SYSTEMS (integral dry contacts)

• NEW vending platform with integral dry • Green LED status for lamp on, Red LED • Based on 4.1 series features, including
contacts (NO, NC and COMMON) status for lamp fail, NO audible 304 stainless chambers and viewing port

IMAGE FLOW RATE MODEL ELECTRICAL PORTS LAMP SLEEVE SHIPPING
WEIGHT
2 GPM 90-265V/ ½” 3.2 kg.
(7.6 lpm) LBV-021 RL-210 RQ-210
(0.45 m /hr.) 50-60Hz. FNPT (7.1 lbs.)
3
3 GPM 90-265V/ ½” 3.6 kg.
(11.4 lpm) LBV-031 RL-290 RQ-290
(0.7 m /hr.) 50-60Hz. MNPT (8 lbs.)
3
6 GPM 90-265V/ ¾” 4.2 kg.
(22.7 lpm) LBV-061 RL-470 RQ-470
(1.4 m /hr.) 50-60Hz. MNPT (9.3 lbs.)
3

Page 8
