BLACKCOMB
5.1
BLACKCOMB
6.1
Replacement Lamps Municipal Low UVT BLACKCOMB 4.1
Low UVT
Replacement Lamps
Municipal
Replacement Parts
UV Sensors
Hot Water
Hot Water UV Sensors Replacement Parts BLACKCOMB

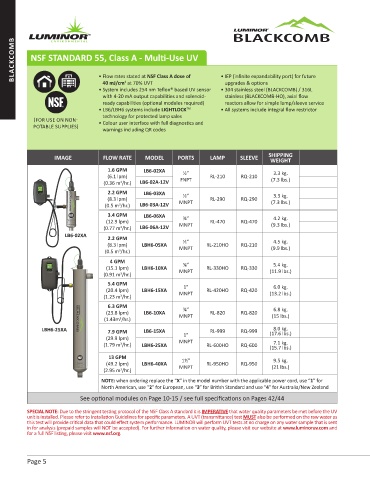

BLACKCOMB NSF STANDARD 55, Class A - Multi-Use UV
C C
Series
T
T
TOC
Replacement Sleevesement Sleeves
Replac
Controllertroller
TOC
Con
• Flow rates stated at NSF Class A dose of
40 mJ/cm at 70% UVT
upgrades & options
2
• System includes 254 nm Teflon® based UV sensor • IEP (infinite expandability port) for future
• 304 stainless steel (BLACKCOMB) / 316L
with 4-20 mA output capabilities and solenoid- stainless (BLACKCOMB-HO), axial flow
Multi-Usese
Multi-U Ligh Light Commercialt Commercial Commer
Commercialcial
ready capabilities (optional modules required) reactors allow for simple lamp/sleeve service
• LB6/LBH6 systems include LIGHTLOCK TM • All systems include integral flow restrictor
technology for protected lamp sales
(FOR USE ON NON- • Colour user interface with full diagnostics and
POTABLE SUPPLIES) warnings including QR codes
IMAGE FLOW RATE MODEL PORTS LAMP SLEEVE SHIPPING
WEIGHT
1.6 GPM LB6-02XA
3.3 kg.
½”
(6.1 lpm) FNPT RL-210 RQ-210 (7.3 lbs.)
3
(0.36 m /hr.) LB6-02A-12V
2.2 GPM LB6-03XA
(8.3 lpm) ½” RL-290 RQ-290 3.3 kg.
(0.5 m /hr.) LB6-03A-12V MNPT (7.3 lbs.)
3
3.4 GPM LB6-06XA ¾” 4.2 kg.
(12.9 lpm) RL-470 RQ-470
(0.77 m /hr.) LB6-06A-12V MNPT (9.3 lbs.)
3
LB6-02XA
2.2 GPM
½”
4.5 kg.
(8.3 lpm) LBH6-05XA MNPT RL-210HO RQ-210 (9.9 lbs.)
3
(0.5 m /hr.)
4 GPM
¾”
5.4 kg.
(15.1 lpm) LBH6-10XA MNPT RL-330HO RQ-330 (11.9 lbs.)
(0.91 m /hr.)
3
5.4 GPM 1” 6.0 kg.
(20.4 lpm) LBH6-15XA MNPT RL-420HO RQ-420 (13.2 lbs.)
(1.23 m /hr.)
3
6.3 GPM ¾” 6.8 kg.
(23.8 lpm) LB6-10XA MNPT RL-820 RQ-820 (15 lbs.)
(1.43m /hr.)
3
8.0 kg.
LBH6-25XA 7.9 GPM LB6-15XA RL-999 RQ-999 (17.6 lbs.)
1”
(29.9 lpm) MNPT
7.1 kg.
3
(1.79 m /hr.) LBH6-25XA RL-600HO RQ-600 (15.7 lbs.)
13 GPM
(49.2 lpm) LBH6-40XA 1½” RL-950HO RQ-950 9.5 kg.
(2.95 m /hr.) MNPT (21 lbs.)
3
NOTE: when ordering replace the “X” in the model number with the applicable power cord, use “1” for
North American, use “2” for European, use “3” for British Standard and use “4” for Australia/New Zealand
See optional modules on Page 10-15 / see full specifications on Pages 42/44
SPECIAL NOTE: Due to the stringent testing protocol of the NSF Class A standard it is IMPERATIVE that water quality parameters be met before the UV
unit is installed. Please refer to Installation Guidelines for specific parameters. A UVT (transmittance) test MUST also be performed on the raw water as
this test will provide critical data that could effect system performance. LUMINOR will perform UVT tests at no charge on any water sample that is sent
in for analysis (prepaid samples will NOT be accepted). For further information on water quality, please visit our website at www.luminoruv.com and
for a full NSF listing, please visit www.nsf.org.
