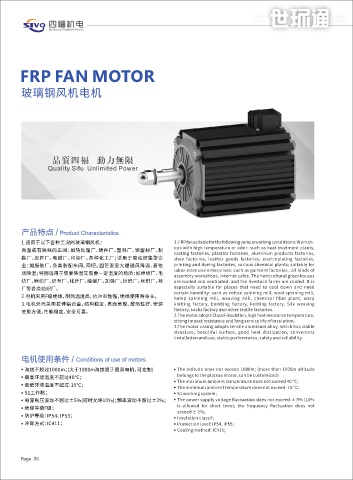

玻璃钢⻛机50Hz产品技术数据 (Technical Data)

FRP FAN MOTOR 额定功率 额定转速 Rated current 额定转矩 堵转转矩 最⼤转矩 堵转电流
额定电流
Rated
型 号
Rated
Rated
Type Output Speed A Torque 倍数 倍数 倍数
玻璃钢⻛机电机 kW min -1 380V 400V 415V Nm Ts/Tn Tmax/Tn Is/In
SAL1-100S-12 0.75 450 3.00 2.85 2.77 15.92 1.9 2.0 4.0
SAL1-100L-12 1.1 450 4.00 3.80 3.68 13.20 1.9 2.0 4.7
SAL1-112S-12 0.75 450 3.00 2.85 2.77 15.92 1.9 2.0 4.0
SAL1-112M-12 1.1 450 4.00 3.80 3.68 13.20 1.9 2.0 4.7
SAL1-112L-12 1.5 450 5.50 5.24 5.08 31.83 1.9 2.1 4.7

品质四福 动力无限 SAL1-132S-12 1.1 450 4.50 4.28 4.16 13.20 1.9 2.0 4.7
Quality Sifu Unlimited Power 额定功率 额定电流
额定功率
额定电流
Rated 额定转速 Rated current 额定转矩 堵转转矩 最⼤转矩 堵转电流
型 号 Output Rated A Rated 倍数 倍数 倍数
Type Speed Torque Ts/Tn Tmax/Tn Is/In
kW min -1 380V 400V 415V Nm
SAL1-100S-10 0.55 540 2.50 2.40 2.33 9.73 1.9 2.0 4.0
SAL1-100M-10 0.75 540 2.80 2.67 2.61 13.20 1.9 2.0 4.7
SAL1-100L1-10 1.1 540 3.70 3.52 3.41 19.45 1.9 2.1 4.7

SAL1-100L2-10 1.5 540 5.0 4.76 4.62 26.5 1.9 2.1 4.7
1.适⽤于以下各种⼯况的玻璃钢⻛机： 1. FRP fan suitable for the following various working conditions:Worksh- SAL1-112S-10 1.1 540 3.70 3.52 3.41 19.45 1.9 2.1 4.7
ops with high temperature or odor: such as heat treatment plants,
⾼温或有异味的⻋间：如热处理⼚、铸件⼚、塑料⼚、铝型材⼚、制
casting factories, plastics factories, aluminum products factories, SAL1-112M-10 1.5 540 5.0 4.76 4.62 26.5 1.9 2.1 4.7
鞋⼚、⽪件⼚、电镀⼚、印染⼚、各种化⼯⼚；适⽤于劳动密集型企 shoe factories, leather goods factories, electroplating factories,
业：如服装⼚，各类装配⻋间，⽹吧。园艺温室⼤棚通⻛降温、畜牧 printing and dyeing factories, various chemical plants; suitable for SAL1-112L-10 2.2 540 6.9 6.5 6.38 38.9 1.9 2.1 4.7
labor-intensive enterprises: such as garment factories , all kinds of
场降温；特别适⽤于需要降温⼜需要⼀定湿度的场所：如棉纺⼚、⽑
assembly workshops, Internet cafes. The horticultural greenhouses
额定功率
纺⼚、⿇纺⼚、织布⼚、化纤⼚、经编⼚、加弹⼚、针织⼚、丝织⼚、袜 are cooled and ventilated, and the livestock farms are cooled. It is 额定功率 额定电流
额定电流
Rated
⼚等各类纺织⼚。 especially suitable for places that need to cool down and need 型 号 Output 额定转速 Rated current 额定转矩 堵转转矩 最⼤转矩 堵转电流
A
certain humidity: such as cotton spinning mill, wool spinning mill, Type Rated Rated 倍数 倍数 倍数
2.电机采⽤F级绝缘，耐热温度⾼，抗冲击性强，绝缘使⽤寿命⻓。 hemp spinning mill, weaving mill, chemical fiber plant, warp Speed Torque Ts/Tn Tmax/Tn Is/In
-1
3.电机外壳采⽤拉伸铝合⾦，结构稳定、表⾯美观、散热性好、安装 knitting factory, bombing factory, knitting factory, Silk weaving kW min 380V 400V 415V Nm
使⽤⽅便，性能稳定、安全可靠。 factory, socks factory and other textile factories. SAL1-90S-8 0.37 670 1.85 1.76 1.70 5.27 1.8 1.9 4.0
2.The motor adopts Class F insulation, high heat resistance temperature,
strong impact resistance and long service life of insulation. SAL1-100L1-8 0.75 680 2.78 2.64 2.54 10.5 1.8 2.0 6.5
3.The motor casing adopts tensile aluminum alloy, which has stable
structure, beautiful surface, good heat dissipation, convenient SAL1-100L2-8 1.1 685 3.42 3.25 3.13 15.3 1.8 2.0 6.5
installation and use, stable performance, safety and reliability.
SAL1-100L3-8 1.5 690 4.64 4.41 4.25 24.9 1.8 2.0 5.5
SAL1-112M-8 1.8 690 5.07 4.81 4.64 24.9 1.8 2.0 6.6
SAL1-112L-8 2.2 690 5.5 5.23 5.08 30.4 1.8 2.0 5.5
海拔不超过1000m；(⼤于1000m海拔属于⾼原电机，可定制) The altitude does not exceed 1000m; (more than 1000m altitude
最⾼环境温度不超过40℃； belongs to the plateau motor, can be customized) 额定功率 额定电流
The maximum ambient temperature does not exceed 40 °C;
最低环境温度不超过-15℃； Rated 额定转速 Rated current 额定转矩 堵转转矩 最⼤转矩 堵转电流
The minimum ambient temperature does not exceed -15 °C; 型 号 额定功率 Rated 额定电流 Rated 倍数 倍数 倍数
Output
A
S1⼯作制； S1 working system; Type Speed Torque Ts/Tn Tmax/Tn Is/In
电源电压波动不超过±5%(短时允许10%)；频率波动不超过±2%； The power supply voltage fluctuation does not exceed ± 5% (10% kW min -1 380V 400V 415V Nm
is allowed for short time); the frequency fluctuation does not
绝缘等级F级；
exceed ± 2%; SAL1-90S1-6 0.25 850 1.07 1.02 0.98 2.81 1.9 2.0 4.0
防护等级：IP54、IP55； Insulation class F;
冷却⽅式：IC411； Protection level: IP54, IP55; SAL1-90S2-6 0.37 885 1.35 1.28 1.23 3.99 1.9 2.0 4.7
Cooling method: IC411; SAL1-90S3-6 0.55 885 1.76 1.68 1.62 5.94 1.9 2.1 4.7
SAL1-90S4-6 0.75 910 2.26 2.15 2.07 7.87 2.0 2.1 5.3
