交流隔膜增压泵 AC diaphragm booster pump

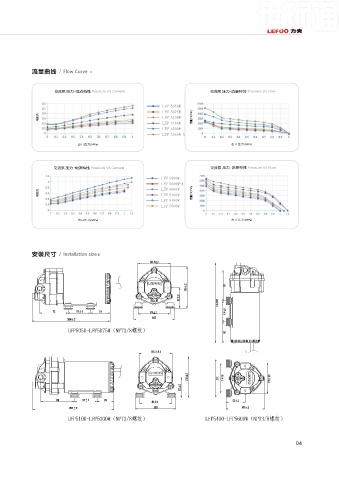

LFP pump 流量曲线 Flow Curve
115V交流系列 隔膜增压泵
115V AC series diaphragm booster pump
When the motor drives the outer rotor (that is, the outer magnetic steel) assembly to
rotateThrough the action of the magnetic field, the magnetic field line passes
through the isolation sleeve and drives the innerThe rotor (that is, the inner magnetic 交流泵 交流泵
steel) assembly rotates synchronously with the impeller .
5050W
5075W
5100W
5150W
欧标 国标 英标 美标 意大利 5200W
5300W-A

接口方式 Interface method

交流泵 交流泵

5800W
5600W-A
5600W
5300W
NPT3/8螺纹 3分U型内插 5400W
(3/8 NPT) (3 points U-shaped internal plug)
5500W

3分快接 3分内插
(3 minute quick connect) (3 points internal insertion) 安装尺寸 Installation size

产品参数 Product parameters

型号 额定电压 进水压力 工作压力 工作电流 工作流量 开放流量 封堵压力 最大电流
LFP5050W ≤0.2A ≥600ml/min ≥1600ml/min ≤0.26A
LFP5075W ≤0.22A ≥750ml/min ≥1800ml/min ≤0.28A
LFP5100W ≤0.3A ≥980ml/min ≥2000ml/min ≤0.4A

LFP5150W ≤0.4A ≥1500ml/min ≥2200ml/min 0.85-1.0MPa ≤0.5A
0.5MP
LFP5200W ≤0.45A ≥1900ml/min ≥2500ml/min ≤0.65A
LFP5300W-A ≤0.5A ≥2200ml/min ≥3000ml/min ≤0.72A
LFP5300W ≤0.6A ≥2700ml/min ≥3500ml/min ≤0.85A
115V AC 0.2MP
LFP5400W ≤0.63A ≥2950ml/min ≥4000ml/min 0.85-1.05MPa ≤1.1A
0.5MPa ≤0.8A ≥3250ml/min
LFP5500W ≥4800ml/min ≤1.2A
0.7Mpa ≥2800ml/min
≤0.9A
0.5MPa ≥3600ml/min
LFP5600W ≥5500ml/min 1.05-1.2MPa ≤1.3A
0.7MPa ≤1.0A ≥3200ml/min
0.5MPa ≤0.95A ≥4000ml/min
≤1.4A
LFP5600W-A ≥6000ml/min
0.7MPa ≤1.10A ≥3500ml/min
