隔膜增压泵 Diaphragm booster pumps

LFP pump

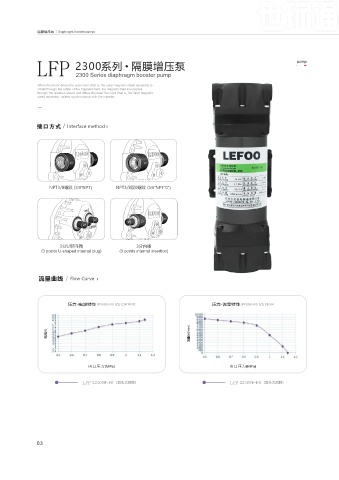

2300系列 隔膜增压泵
2300 Series diaphragm booster pump
When the motor drives the outer rotor (that is, the outer magnetic steel) assembly to
rotateThrough the action of the magnetic field, the magnetic field line passes
through the isolation sleeve and drives the innerThe rotor (that is, the inner magnetic
steel) assembly rotates synchronously with the impeller .
产品参数 Product parameters

型号 LFP22300W-FD（双头大四腔）
接口方式 Interface method
额定电压 36V DC

进水压力 0.2MPa

工作压力 0.7MPa

工作电流 ≤6.5A

NPT3/8螺纹 (3/8"NPT) NPT3/8双0螺纹 (3/8"NPT"0")
工作流量 ≥8500mL/min
开放流量 ≥9500ml/min

封堵压力 1.1-1.3MPa

最大电流 ≤7.5A

3分U型内插 3分内插
(3 points U-shaped internal plug) (3 points internal insertion)

安装尺寸 Installation size
流量曲线 Flow Curve

22300W-FD （双头大四腔） 22300W-FD （双头大四腔）

03 04
