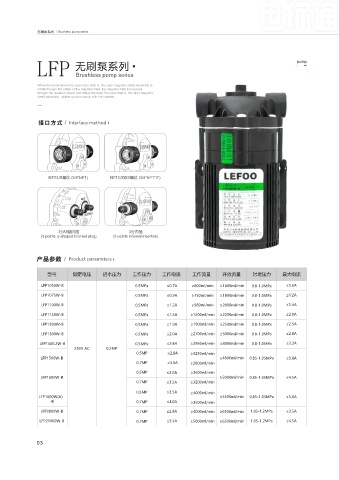

无刷泵系列 Brushless pump series

LFP pump 流量曲线 Flow Curve
无刷泵系列
Brushless pump series
交流泵 交流泵
When the motor drives the outer rotor (that is, the outer magnetic steel) assembly to
rotateThrough the action of the magnetic field, the magnetic field line passes
through the isolation sleeve and drives the innerThe rotor (that is, the inner magnetic
steel) assembly rotates synchronously with the impeller .

接口方式 Interface method

交流泵 交流泵
NPT3/8螺纹 (3/8"NPT) NPT3/8双0螺纹 (3/8"NPT"0")

3分U型内插 3分内插
(3 points U-shaped internal plug) (3 points internal insertion)

产品参数 Product parameters
交流泵 交流泵

型号 额定电压 进水压力 工作压力 工作电流 工作流量 开放流量 封堵压力 最大电流
LFP1050W-B 0.5MPa ≤0.7A ≥600ml/min ≥1600ml/min 0.8-1.0MPa ≤1.0A
LFP1075W-B 0.5MPa ≤0.9A ≥750ml/min ≥1800ml/min 0.8-1.0MPa ≤1.2A
LFP1100W-B 0.5MPa ≤1.2A ≥980ml/min ≥2000ml/min 0.8-1.0MPa ≤1.4A

LFP1150W-B 0.5MPa ≤1.5A ≥1500ml/min ≥2200ml/min 0.8-1.0MPa ≤2.0A
LFP1200W-B 0.5MPa ≤1.9A ≥1900ml/min ≥2500ml/min 0.8-1.0MPa ≤2.5A
LFP1300W-B 0.5MPa ≤2.0A ≥2700ml/min ≥3000ml/min 0.8-1.0MPa ≤2.8A
LFP1400.2W-B 0.5MPa ≤2.4A ≥2950ml/min ≥4000ml/min 0.8-1.0MPa ≤3.2A
230V AC 0.2MP 安装尺寸 Installation size
0.5MP ≤2.8A ≥3250ml/min
LFP1500W-B ≥4800ml/min 0.85-1.05MPa ≤3.8A
0.7MP ≤3.0A ≥2800ml/min
0.5MP ≤3.0A ≥3600ml/min
LFP1600W-B ≥5000ml/min 0.85-1.05MPa ≤4.5A
0.7MP ≤3.2A ≥3200ml/min

0.5MP ≤3.5A ≥4000ml/min
LFP1600W(A） ≥5500ml/min 0.85-1.05MPa ≤5.0A
-B 0.7MP ≤4.0A ≥3500ml/min
LFP2800W-B 0.7MP ≤2.8A ≥4000ml/min ≥6500ml/min 1.05-1.2MPa ≤3.5A
LFP21000W-B 0.7MP ≤3.5A ≥5000ml/min ≥6500ml/min 1.05-1.2MPa ≤4.5A

03 04
