交流隔膜增压泵 AC diaphragm booster pump

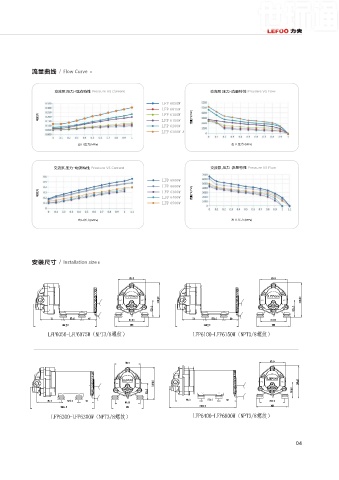

LFP pump 流量曲线 Flow Curve
230V交流系列 隔膜增压泵
230V AC series diaphragm booster pump
When the motor drives the outer rotor (that is, the outer magnetic steel) assembly to
rotateThrough the action of the magnetic field, the magnetic field line passes 交流泵 交流泵
through the isolation sleeve and drives the innerThe rotor (that is, the inner magnetic
steel) assembly rotates synchronously with the impeller .
6050W
6075W
6100W
6150W
6200W
欧标 国标 美标 欧标 欧标
6300W-A

接口方式 Interface method

交流泵 交流泵

6800W
6600W
6300W
6400W
NPT3/8螺纹 3分U型内插
(3/8 NPT) (3 points U-shaped internal plug) 6500W

3分快接 3分内插
(3 minute quick connect) (3 points internal insertion)
安装尺寸 Installation size

产品参数 Product parameters

型号 额定电压 进水压力 工作压力 工作电流 工作流量 开放流量 封堵压力 最大电流
LFP6050W ≤0.2A ≥600ml/min ≥1600ml/min ≤0.24A
LFP6075W ≤0.22A ≥750ml/min ≥1800ml/min ≤0.24A
LFP6100W ≤0.3A ≥980ml/min ≥2000ml/min ≤0.28A
LFP6150W ≤0.4A ≥1500ml/min ≥2200ml/min ≤0.28A
0.5MP 0.85-1.0MPa
LFP6200W ≤0.45A ≥1900ml/min ≥2500ml/min ≤0.35A
LFP6300W-A ≤0.5A ≥2200ml/min ≥3000ml/min ≤0.38A
LFP6300W ≤0.6A ≥2700ml/min ≥3500ml/min ≤0.4A
230V AC 0.2MP
LFP6400W ≤0.63A ≥2950ml/min ≥4000ml/min ≤0.45A
0.5MPa ≤0.8A ≥3250ml/min
LFP6500W ≥4800ml/min ≤0.53A
0.7Mpa ≥2800ml/min
≤0.9A
0.5MPa ≥3600ml/min
LFP6600W ≥5000ml/min 1.05-1.2MPa ≤0.57A
0.7MPa ≤1.0A ≥3600ml/min
0.5MPa ≤0.95A ≥4000ml/min
LFP6800W ≥5500ml/min ≤0.8A
0.7MPa ≤1.10A ≥3600ml/min
