隔膜增压泵 Diaphragm booster pumps
LFP pump
2000系列 隔膜增压泵
2000 Series diaphragm booster pump
When the motor drives the outer rotor (that is, the outer magnetic steel) assembly to
rotateThrough the action of the magnetic field, the magnetic field line passes
through the isolation sleeve and drives the innerThe rotor (that is, the inner magnetic
steel) assembly rotates synchronously with the impeller .

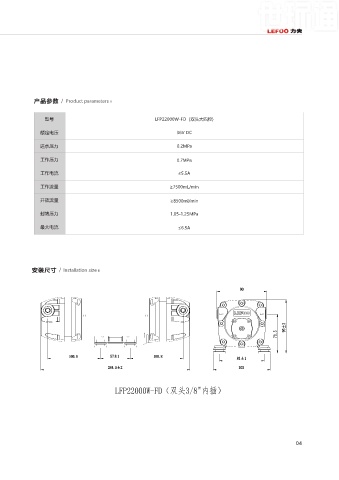

产品参数 Product parameters
型号 LFP22000W-FD（双头大四腔）
接口方式 Interface method
额定电压 36V DC
进水压力 0.2MPa
工作压力 0.7MPa
工作电流 ≤5.5A
工作流量 ≥7500mL/min
NPT3/8螺纹 (3/8"NPT) NPT3/8双0螺纹 (3/8"NPT"0")
开放流量 ≥8500ml/min
封堵压力 1.05-1.25MPa
最大电流 ≤6.5A
3分U型内插 3分内插
(3 points U-shaped internal plug) (3 points internal insertion)
安装尺寸 Installation size
流量曲线 Flow Curve
22000W-FD （双头大四腔） 22000W-FD （双头大四腔）
