隔膜增压泵  Diaphragm booster pumps



 LFP   pump
 1800系列   隔膜增压泵
 1800 Series diaphragm booster pump
 When the motor drives the outer rotor (that is, the outer magnetic steel) assembly to
 rotateThrough the action of the magnetic field, the magnetic field line passes
 through the isolation sleeve and drives the innerThe rotor (that is, the inner magnetic
 steel) assembly  rotates synchronously with the impeller .
            产品参数       Product parameters


                型号                                     LFP21800W-FD（双头大四腔）
 接口方式  Interface method
              额定电压                                            36V DC

              进水压力                                            0.2MPa

              工作压力                                            0.7MPa

              工作电流                                             ≤5.0A

 NPT3/8螺纹 (3/8"NPT)  NPT3/8双0螺纹 (3/8"NPT"0")  工作流量          ≥7000mL/min

              开放流量                                          ≥8000ml/min

              封堵压力                                          1.05-1.25MPa

              最大电流                                             ≤6.2A


 3分U型内插  3分内插
 (3 points U-shaped internal plug)  (3 points internal insertion)

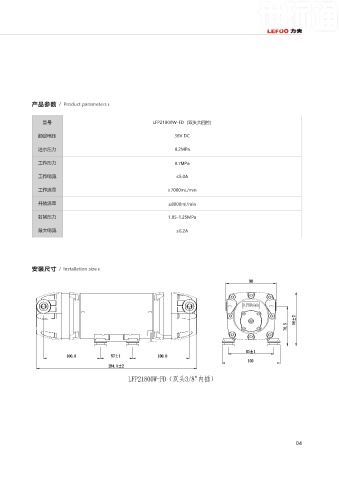

            安装尺寸       Installation size


 流量曲线  Flow Curve





















 21800W-FD （双头大四腔）  21800W-FD （双头大四腔）
