隔膜增压泵 Diaphragm booster pumps

LFP pump 产品参数 Product parameters

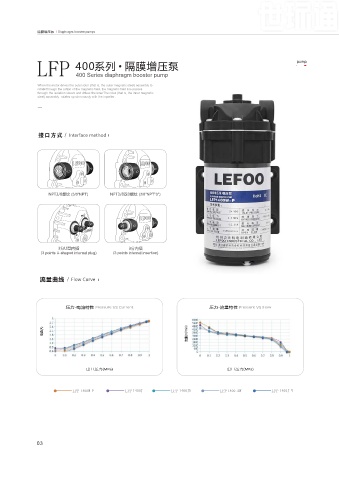

400系列 隔膜增压泵
400 Series diaphragm booster pump
When the motor drives the outer rotor (that is, the outer magnetic steel) assembly to
rotateThrough the action of the magnetic field, the magnetic field line passes
through the isolation sleeve and drives the innerThe rotor (that is, the inner magnetic 型号 LFP1400J LFP1400JD LFP1400W-P LFP1400.2W LFP1400J-V
steel) assembly rotates synchronously with the impeller .
额定电压 24V DC

进水压力 0.2MPa

接口方式 Interface method 工作压力 0.5MPa

工作电流 ≤2.5A ≤3.0A ≤2.5A

工作流量 ≥2950mL/min

开放流量 ≥4500mL/min ≥4000mL/min

封堵压力 0.85-1.0MPa 0.9-1.1MPa
NPT3/8螺纹 (3/8"NPT) NPT3/8双0螺纹 (3/8"NPT"0")
最大电流 ≤3.5A ≤4.0A ≤3.5A

安装尺寸 Installation size
3分U型内插 3分内插
(3 points U-shaped internal plug) (3 points internal insertion)

流量曲线 Flow Curve

1400W-P 1400J 1400JD 1400.2W 1400J-V
