隔膜增压泵 Diaphragm booster pumps

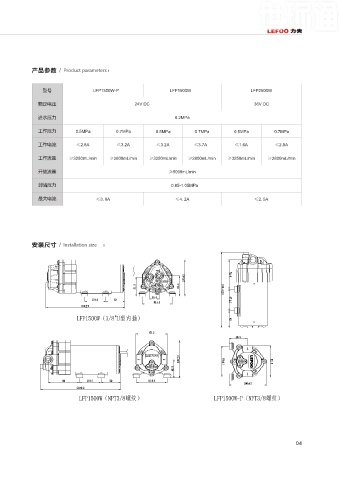

LFP pump 产品参数 Product parameters
500系列 隔膜增压泵
500 Series diaphragm booster pump
When the motor drives the outer rotor (that is, the outer magnetic steel) assembly to
rotateThrough the action of the magnetic field, the magnetic field line passes 型号 LFP1500W-P LFP1500W LFP2500W
through the isolation sleeve and drives the innerThe rotor (that is, the inner magnetic
steel) assembly rotates synchronously with the impeller .
额定电压 24V DC 36V DC

进水压力 0.2MPa

接口方式 Interface method 工作压力 0.5MPa 0.7MPa 0.5MPa 0.7MPa 0.5MPa 0.7MPa

工作电流 ≤2.8A ≤3.2A ≤3.2A ≤3.7A ≤1.6A ≤2.0A

工作流量 ≥3250mL/min ≥2800mL/min ≥3250mL/min ≥2800mL/min ≥3250mL/min ≥2800mL/min

开放流量 ≥5000mL/min

封堵压力 0.85-1.05MPa
NPT3/8螺纹 (3/8"NPT) NPT3/8双0螺纹 (3/8"NPT"0")
最大电流 ≤3.8A ≤4.2A ≤2.5A

3分U型内插 3分内插 安装尺寸 Installation size
(3 points U-shaped internal plug) (3 points internal insertion)

流量曲线 Flow Curve

03 04
