P. 17
隔膜增压泵 Diaphragm booster pumps

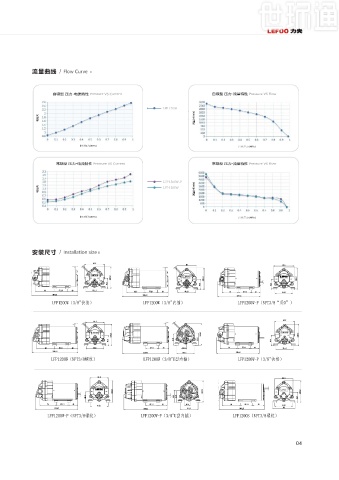

LFP pump 流量曲线 Flow Curve
200系列 隔膜增压泵
200 Series diaphragm booster pump
When the motor drives the outer rotor (that is, the outer magnetic steel) assembly to
rotateThrough the action of the magnetic field, the magnetic field line passes
through the isolation sleeve and drives the innerThe rotor (that is, the inner magnetic
steel) assembly rotates synchronously with the impeller .
接口方式 Interface method
NPT3/8螺纹 (3/8"NPT) NPT3/8双0螺纹 (3/8"NPT"0")
3分快接 3分内插
(3 minute quick connect) (3 points internal insertion)
安装尺寸 Installation size
产品参数 Product parameters
型号 LFP1200S LFP1200W-P LFP1200W
额定电压 24V DC
进水压力 0MPa 0.2MPa
工作压力 0.5MPa
工作电流 ≤2.5A ≤1.9A
工作流量 ≥1800mL/min ≥1900mL/min
开放流量 ≥2400mL/min ≥2500mL/min
封堵压力 0.8-1.0MPa 0.85-1.0MPa
最大电流 ≤3.3A ≤2.5A
自吸高度 ≥3.0m
03 04
