隔膜增压泵 Diaphragm booster pumps

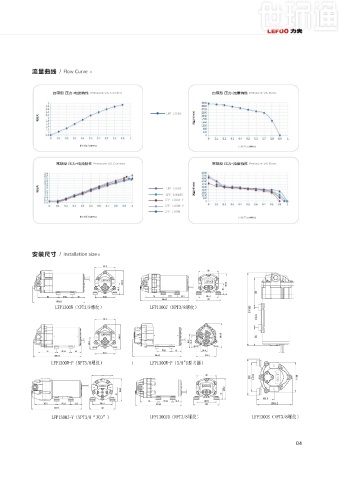

LFP pump 流量曲线 Flow Curve
300系列 隔膜增压泵
300 Series diaphragm booster pump
When the motor drives the outer rotor (that is, the outer magnetic steel) assembly to
rotateThrough the action of the magnetic field, the magnetic field line passes
through the isolation sleeve and drives the innerThe rotor (that is, the inner magnetic
steel) assembly rotates synchronously with the impeller .

LFP 1300S

接口方式 Interface method

NPT3/8螺纹 (3/8"NPT) NPT3/8双0螺纹 (3/8"NPT"0") LFP 1300J
LFP 1300JD
LFP 1300J-V
LFP 1300W-P
LFP 1300W

3分U型内插 3分内插
(3 points U-shaped internal plug) (3 points internal insertion)
安装尺寸 Installation size

产品参数 Product parameters

型号 LFP1300S LFP1300J LFP1300JD LFP1300J-V LFP1300W-P LFP1300W

额定电压 24V DC

进水压力 0MPa 0.2MPa

工作压力 0.5MPa

工作电流 ≤3.5A ≤2.4A ≤2.3A ≤2.4A

工作流量 ≥2600mL/min ≥2700mL/min

开放流量 ≥3200mL/min ≥3500mL/min

封堵压力 0.8-1.0MPa 0.85-1.0MPa 0.9-1.1MPa 0.85-1.0MPa

最大电流 ≤4.5A ≤3.2A

自吸高度 ≥3.0m
