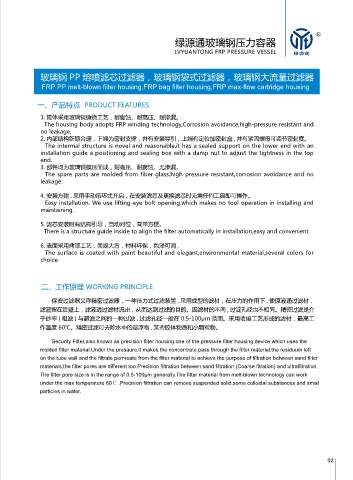

Page 3 - 玻璃钢过滤器

玻璃钢 PP 熔喷滤芯过滤器，玻璃钢袋式过滤器，玻璃钢大流量过滤器
FRP PP melt-blown filter housing,FRP bag filter housing,FRP max-flow cartridge housing

一、产品特点 PRODUCT FEATURES

1. 筒体采用玻璃钢缠绕工艺，耐腐蚀、耐高压、耐渗漏。
The housing body adopts FRP winding technology,Corrosion avoidance,high-pressure resistant and
no leakage.
2. 内部结构新颖合理，下端为密封支撑，并有安装导引，上端有定位加密封盒 , 并有紧固螺母可调节密封度。
The intermal structure is novel and reasonable,it has a sealed support on the lower end with an
installation guide a positioning and sealing box with a damp nut to adjust the tightness in the top
end.
3. 部件均为玻璃钢模压而成，耐高压、耐腐蚀、无渗漏。
The spare parts are molded from fiber-glass,high-pressure resistant,corrosion avoidance and no
leakage.

4. 安装方建 , 采用手动吊环式开启，在安装滤芯及更换滤芯时无需任何工具即可操作。
Easy installation. We use lifting-eye bolt opening,which makes no tool operation in installing and
maintaining.

5. 滤芯安装时有结构引导，自动对位，简单方便。
There is a structure guide inside to align the filter automatically in installation,easy and convenient.

6. 表面采用烤漆工艺，美观大方，材料环保，色泽可调 .
The surface is coated with paint beautiful and elegant,environmental material,several colors for
choice.

二、工作原理 WORKING PRINCIPLE

保安过滤器又称精密过滤器，一种压力式过滤装置 , 采用成型的滤材，在压力的作用下 . 使原液通过滤材，
滤渣留在管壁上，滤液透过滤材流出，从而达到过滤的目的。因滤材的不同 , 过淀孔径也不相同。精密过滤是介
于砂率 ( 粗滤 ) 与超滤之间的一种过滤 , 过滤孔径一般在 0.5-100μm 范圉。采用喷熔工艺形成的滤材，最高工
作温度 60℃。精密过滤可去除水中的悬浮物 , 某些胶体物质和小颗粒物。

Security Filter,also known as precision filter housing.one of the pressure filter housing device.which uses the
molded filter material.Under the presaure,it makes the concentrate pass through the filter material,the residuum left
on the tube wall and the filtrate permeate from the filter material to achieve the purpose of filtration between sand filter
materials,the filter pores are different too.Precision filtration between sand filtration (Coarse fitration) and ultrafiltration.
The filter pore size is in the range of 0.5-100μm generally.The fitter material from melt-blown technology can work
under the max temperature 60℃ .Precision filtration can remove suspended solid,some colloidal substances and small
particles in water.

02
