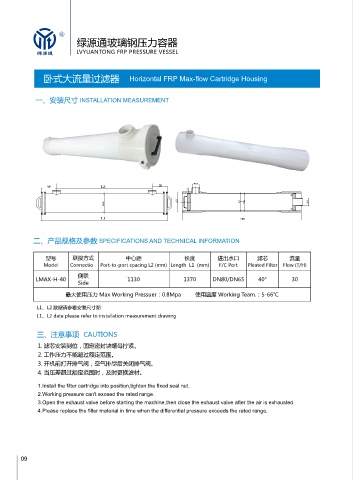

卧式大流量过滤器 Horizontal FRP Max-flow Cartridge Housing
一、安装尺寸 INSTALLATION MEASUREMENT
120 L2 120
O.D 212
L1 1400
二、产品规格及参数 SPECIFICATIONS AND TECHNICAL INFORMATION
型号 联接方式 中心距 长度 进出水口 滤芯 流量
Model Connection Port-to-port spacing L2 (mm) Length L1 (mm) F/C Port Pleated Filter Flow (T/H)
侧联
LMAX-H-40 1130 1370 DN80/DN65 40" 30
Side
最大使用压力 Max Working Pressuer：0.8Mpa 使用温度 Working Team.：5-66℃
L1、L2 数据请参看安装尺寸图
L1、L2 date please refer to installation measurement drawing
三、注意事项 CAUTIONS
1. 滤芯安装到位，固定密封块螺母拧紧。
2. 工作压力不能超过额定范围。
3. 开机前打开排气阀，空气排尽后关闭排气阀。
4. 当压差超过额定范围时，及时更换滤材。
1.Install the filter cartridge into position,tighten the fixed seal nut.
2.Working pressure can't exceed the rated range.
3.Open the exhaust valve before starting the machine,then close the exhaust valve after the air is exhausted.
4.Please replace the filter material in time when the differential pressure exceeds the rated range.
