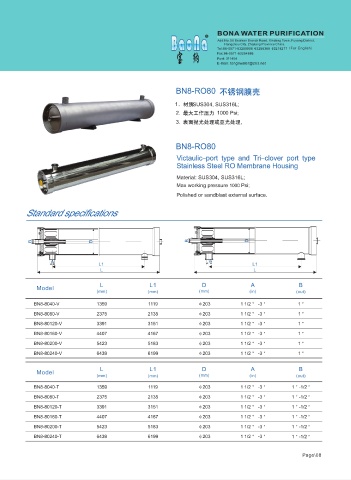

BN7-RO80 不锈钢膜壳 BN8-RO80 不锈钢膜壳

1. 材质 SUS304, SUS316L; 1. 材质 SUS304, SUS316L;
2. 最大工作压力 300 Psi; 2. 最大工作压力 1000 Psi;
3. 表面抛光处理或亚光处理。 3. 表面抛光处理或亚光处理。

BN7-RO80: BN8-RO80
Stainless Steel RO Membrane Housing Victaulic-port type and Tri-clover port type
Stainless Steel RO Membrane Housing
Material: SUS304, SUS316L;
Max working pressure 300 Psi; Material: SUS304, SUS316L;
Polished or sandblast external surface . Max working pressure 1000 Psi;
Polished or sandblast external surface.

Standard specifications

Standard specifications

B D B D

A A
L1 L1
L L
B D
Model L L1 D A B
(mm) (mm) (mm) (in) (out)

BN8-8040-V 1359 1119 φ203 1 1/2＂ -3＂ 1＂
BN8-8080-V 2375 2135 φ203 1 1/2＂ -3＂ 1＂
A
L1 BN8-80120-V 3391 3151 φ203 1 1/2＂ -3＂ 1＂
BN8-80160-V 4407 4167 φ203 1 1/2＂ -3＂ 1＂
L
BN8-80200-V 5423 5183 φ203 1 1/2＂ -3＂ 1＂

BN8-80240-V 6439 6199 φ203 1 1/2＂ -3＂ 1＂

L L1 D A B L L1 D A B
Model Model
(mm) (mm) (mm) (in) (out) (mm) (mm) (mm) (in) (out)
BN7-8040 1288 1101 φ203 1 1/2＂ 1＂ BN8-8040-T 1359 1119 φ203 1 1/2＂ -3＂ 1＂-1/2＂
BN7-8080 2304 2117 φ203 1 1/2＂ 1＂ BN8-8080-T 2375 2135 φ203 1 1/2＂ -3＂ 1＂-1/2＂
BN7-80120 3320 3133 φ203 1 1/2＂ 1＂ BN8-80120-T 3391 3151 φ203 1 1/2＂ -3＂ 1＂-1/2＂
BN7-80160 4336 4149 φ203 1 1/2＂ 1＂ BN8-80160-T 4407 4167 φ203 1 1/2＂ -3＂ 1＂-1/2＂
BN7-80200 5352 5165 φ203 1 1/2＂ 1＂ BN8-80200-T 5423 5183 φ203 1 1/2＂ -3＂ 1＂-1/2＂
BN7-80240 6368 6181 φ203 1 1/2＂ 1＂ BN8-80240-T 6439 6199 φ203 1 1/2＂ -3＂ 1＂-1/2＂
