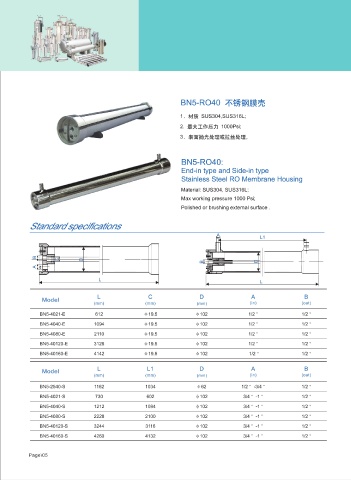

BN5-RO40 不锈钢膜壳
BN6-RO80 不锈钢膜壳
1. 材质 SUS304,SUS316L;
1. 材质 SUS304,SUS316L;
2. 最大工作压力 1000Psi;
2. 最大工作压力 300Psi;
3. 表面抛光处理或拉丝处理。
3. 表面抛光处理或亚光处理。

BN5-RO40: BN6-RO80
End-in type and Side-in type Stainless Steel RO Membrane Housing
Stainless Steel RO Membrane Housing
Material: SUS304, SUS316L;
Material: SUS304, SUS316L;
Max working pressure 300 Psi;
Max working pressure 1000 Psi;
Polished or sandblast external surface .
Polished or brushing external surface .

Standard specifications
A L1
Standard specifications

B
C D
B D
A
L L
L
L C D A B
Model
(mm) (mm) (mm) (in) (out)
A
BN5-4021-E 612 φ19.5 φ102 1/2＂ 1/2＂
BN5-4040-E 1094 φ19.5 φ102 1/2＂ 1/2＂ B D
BN5-4080-E 2110 φ19.5 φ102 1/2＂ 1/2＂

BN5-40120-E 3126 φ19.5 φ102 1/2＂ 1/2＂
BN5-40160-E 4142 φ19.5 φ102 1/2＂ 1/2＂

L L1 D A B L D A B
Model Model
(mm) (mm) (mm) (in) (out) (mm) (mm) (in) (out)
BN5-2540-S 1162 1034 φ62 1/2＂ -3/4＂ 1/2＂ BN6-8040 1232 φ203 1- 1/2＂ 1＂
BN5-4021-S 730 602 φ102 3/4＂ -1＂ 1/2＂ BN6-8080 2248 φ203 1- 1/2＂ 1＂
BN5-4040-S 1212 1084 φ102 3/4＂ -1＂ 1/2＂ BN6-80120 3264 φ203 1- 1/2＂ 1＂
BN5-4080-S 2228 2100 φ102 3/4＂ -1＂ 1/2＂ BN6-80160 4284 φ203 1- 1/2＂ 1＂
BN5-40120-S 3244 3116 φ102 3/4＂ -1＂ 1/2＂ BN6-80200 5300 φ203 1- 1/2＂ 1＂
BN5-40160-S 4260 4132 φ102 3/4＂ -1＂ 1/2＂ BN6-80240 6316 φ203 1- 1/2＂ 1＂
