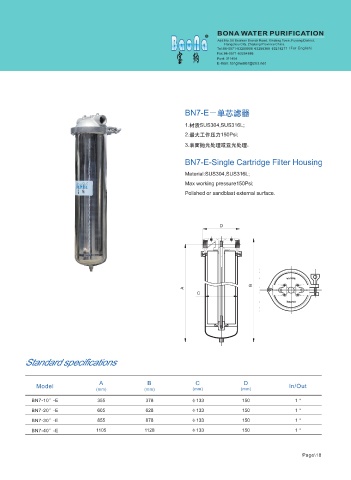

BN7-C 型 BN7-D 型
BN7- 单芯滤器 BN7-E－单芯滤器
1. 材质 SUS304, SUS316L; 1.材质SUS304,SUS316L;
2. 最大工作压力 100 Psi; 2.最大工作压力150Psi;
3. 表面抛光处理或亚光处理。 3.表面抛光处理或亚光处理。
BN7-Single Cartridge Filter Housing BN7-E-Single Cartridge Filter Housing
Material: SUS304, SUS316L; Material:SUS304,SUS316L;
Max working pressure 100 Psi; Max working pressure150Psi;
Polished or sandblast external surface . Polished or sandblast external surface.
D
Standard specifications
B
A
C
A B C
Model In/Out
(mm) (mm) (mm)
BN7-10″ 280 345 φ88 3/4＂,1＂
BN7-20″ 534 599 φ88 3/4＂,1＂
BN7-30″ 788 853 φ88 1＂
Standard specifications
BN7-40″ 1042 1107 φ88 1＂
B
A C A B C D
Model In/Out
(mm) (mm) (mm) (mm)
BN7-10″-E 355 378 φ133 150 1＂
BN7-20″-E 605 628 φ133 150 1＂
BN7-30″-E 855 878 φ133 150 1＂
BN7-40″-E 1105 1128 φ133 150 1＂
